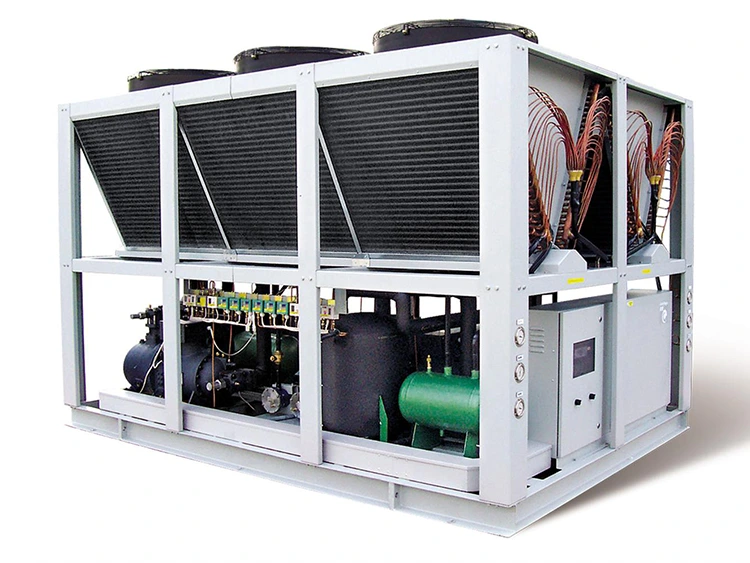

Air-Cooled screw chiller Unit
Air-Cooled Screw Chiller Unit manufactured by Lynxcool provides independent water-free cooling equipped with high-capacity screw compressors, perfectly suited for mid-to-large industrial applications. Featuring flexible layout and easy on-site deployment, the unit supports rapid installation while requiring minimal daily maintenance. It runs steadily with outstanding energy efficiency, adapting well to water-scarce regions and rooftop installation conditions.
Air-Cooled Screw Chiller Unit, supplied by a Lynxcool , is engineered to meet the demanding needs of industrial, commercial, and specialized refrigeration applications. The Unit is ideal for scenarios requiring independent cooling solutions, including locations without water access, rooftop installations with space constraints, or northern regions prone to freezing.
What Makes This Chiller Independent and Flexible?
Water-Free Operation with Air-Cooled Condenser
● Large-area finned condenser for efficient air heat rejection
● Eliminates cooling towers, pumps, and complex piping
● Reduces installation complexity and maintenance requirements
● Suitable for dry regions, limited rooftop space, and cold climates
High-Capacity Screw Compressor
● Single-unit capacity exceeds typical scroll compressors
● Supports stepless modulation to match real load
● Optimized for energy efficiency under varying operating conditions
● Ideal for mid-to-large-scale industrial cooling and commercial systems
Core Advantages for Users
|
Feature |
Lynxcool Air-Cooled Screw Chiller Unit |
Typical Alternatives |
Benefit |
|
Cooling Mode |
Air-cooled, water-free |
Water-cooled |
Independent, flexible deployment |
|
Compressor Type |
Semi-hermetic / Open-type screw |
Scroll or reciprocating |
Larger capacity, load-matching efficiency |
|
Maintenance |
Modular design, simple operation |
Complex service |
Minimal downtime, reduced labor costs |
|
Installation |
Rapid deployment |
Water-cooled systems |
Fast start-up, low infrastructure dependency |
|
Application Scale |
Mid-to-large industrial & commercial |
Small to medium units |
Supports multi-point process cooling & thermal storage |
Extreme Reliability and Minimal Maintenance
· Industrial-grade intelligent control with automatic monitoring and protection
· Multi-stage oil separationofAir-Cooled Screw Chiller Unit ensures clean operation and long compressor life
· One-touch interface simplifies operation without specialized training
· Modular components allow quick service and reduced downtime
What Industries Benefit Most?
· Cold Chain & Logistics: Multi-point distribution, warehouse cooling
· Food & Agriculture: Food processing, aquaculture, mushroom cultivation
· Pharmaceuticals & Biotech: GMP-compliant cooling, ultra-low temperature storage
· Industrial Manufacturing: Petrochemical, chemical processing, large-scale HVAC
· Commercial Installations: Rooftop chillers, ice rinks, snowmaking
Technical parameters of Semi-Hermetic screw chiller
|
Unit Model |
CW1L WDGPAWAA |
|||||||||||||||
|
0040 |
0050 |
0060 |
0070 |
0080 |
0095 |
0105 |
0115 |
0145 |
0160 |
0190 |
0205 |
0215 |
0245 |
|||
|
Cooling capacity |
KW |
42.3 |
53.9 |
61.5 |
73.4 |
84.5 |
99.6 |
109.1 |
115.0 |
147.8 |
162.9 |
193.3 |
205.1 |
217.0 |
249.4 |
|
|
kCal/h |
36378 |
46354 |
52890 |
63124 |
72670 |
85656 |
93826 |
98900 |
127108 |
140094 |
166238 |
176386 |
186620 |
214484 |
||
|
compressor |
Quantity |
tower |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Input Power |
kW |
28.3 |
33.7 |
373 |
45.4 |
522 |
61.3 |
66.9 |
70.9 |
90.3 |
982 |
114.5 |
118.1 |
123.7 |
141.7 |
|
|
Adjustable |
Fully loaded-75-50%,min |
|||||||||||||||
|
Starting method |
Y/△ |
|||||||||||||||
|
Refrigerant |
R507A |
|||||||||||||||
|
Evaporator |
Type |
Shell and tube dry evaporator |
||||||||||||||
|
Inlet and outlet water temperature |
℃ |
-20/-25 |
||||||||||||||
|
Water flow rate |
m³/h |
8.7 |
11.1 |
12.6 |
15.1 |
174 |
20.5 |
224 |
23.6 |
303 |
334 |
39.7 |
42.1 |
44.6 |
51.2 |
|
|
Inlet and outlet water pipes |
mm |
45 |
57 |
57 |
76 |
76 |
76 |
76 |
76 |
89 |
89 |
89 |
108 |
108 |
108 |
|
|
Water pressure drop |
kPa |
s70 |
||||||||||||||
|
Condenser |
Type |
Shell and tube condenser |
||||||||||||||
|
Inlet and outlet water temperature |
℃ |
30/35 |
||||||||||||||
|
Water flow rate |
m³/h |
12.0 |
15.2 |
17.1 |
20.6 |
23.7 |
27.9 |
30.5 |
32.2 |
412 |
48.0 |
53.3 |
560 |
59.0 |
67.7 |
|
|
Inlet and outlet water pipes |
mm |
57 |
76 |
76 |
76 |
76 |
89 |
89 |
89 |
108 |
108 |
108 |
108 |
108 |
133 |
|
|
Water pressure drop |
kPa |
≤70 |
||||||||||||||
|
External dimensions |
Length |
mm |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
3400 |
3400 |
3400 |
3400 |
3400 |
|
Width |
mm |
1100 |
1100 |
1100 |
1200 |
1200 |
1300 |
1300 |
1300 |
1500 |
1500 |
1500 |
1600 |
1600 |
1600 |
|
|
Height |
mm |
1500 |
1500 |
1500 |
1600 |
1600 |
1700 |
1700 |
1700 |
1800 |
1800 |
1800 |
1900 |
1900 |
1900 |
|
|
Unit weight |
Net Weight |
kg |
1500 |
1500 |
1500 |
2000 |
2000 |
2500 |
2500 |
2500 |
3000 |
3000 |
3000 |
3500 |
3500 |
3500 |
|
Operating Weight |
kg |
1800 |
1800 |
1800 |
2400 |
2400 |
3000 |
3000 |
3000 |
3600 |
3600 |
3600 |
4200 |
4200 |
4200 |
|
|
Note: 1. Power supply: 3P/380V/50Hz, voltage fluctuation range ±10%; 2. The unit inlet and outlet use water flange connections. Please specify other connection methods when ordering; 3. Due to technical improvements, the unit's parameters, dimensions, and weight may vary. The actual design shall prevail; 4. The above models are standard models only. Custom designs can be made according to user requirements. |
||||||||||||||||
Frequently Asked Questions
Q: Can this chiller work without water?
A: Yes. The Lynxcool Air-Cooled Screw Chiller Unit uses a large-area finned air condenser, completely eliminating water dependency. This makes it ideal for regions with water scarcity or where installing water-cooling systems is impractical.
Q: Is it suitable for rooftop installation?
A: Absolutely. Its compact, water-free design allows installation in limited spaces, including rooftops, without compromising performance or safety.
Q: How does it handle variable load?
A: The stepless screw compressor adjusts its output precisely to match the actual cooling demand. This ensures energy-efficient operation and maintains stable temperatures even under fluctuating loads.
Q: Is maintenance intensive?
A: No. The unit’s modular design, combined with a user-friendly one-touch interface, simplifies routine maintenance and reduces downtime. Minimal intervention is required, making it highly cost-effective.
Q: Can it support mid-to-large industrial applications?
A: Yes. This chiller is ideal for multi-point process cooling and thermal storage systems, providing reliable performance, flexible deployment, and scalable capacity for medium to large industrial or commercial projects.
The Lynxcool Air-Cooled Screw Chiller Unit provides independent, flexible, and high-performance cooling solutions. By combining water-free operation, large-capacity screw compressors, stepless load matching, and rapid deployment, it meets the needs of industrial, commercial, and specialized applications while delivering extreme reliability, energy efficiency, and minimal maintenance. Lynxcool’s global service network and professional engineering support further ensure that every project is completed efficiently and successfully.
