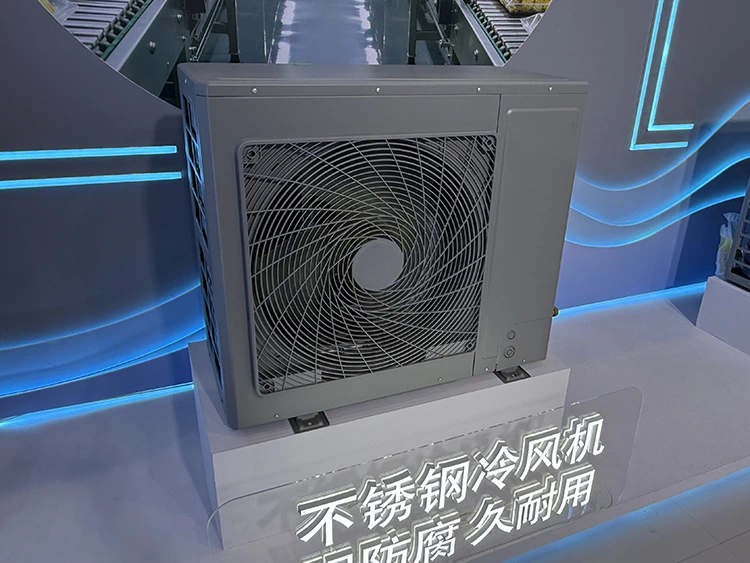

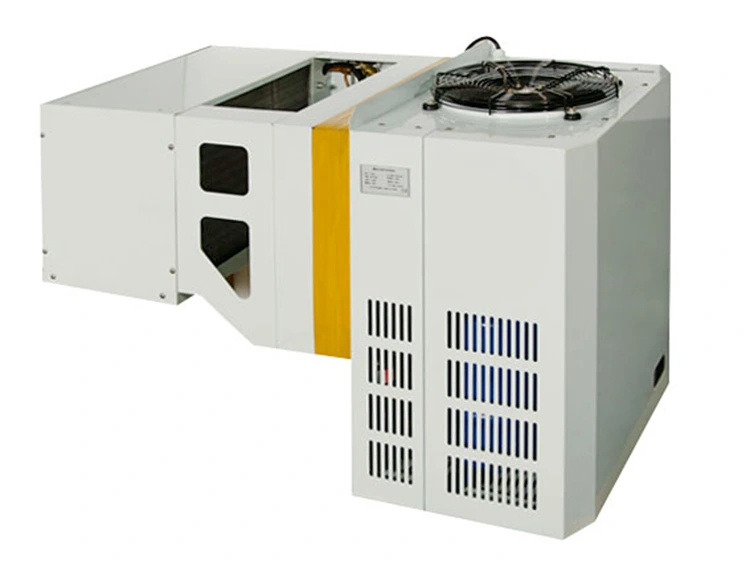

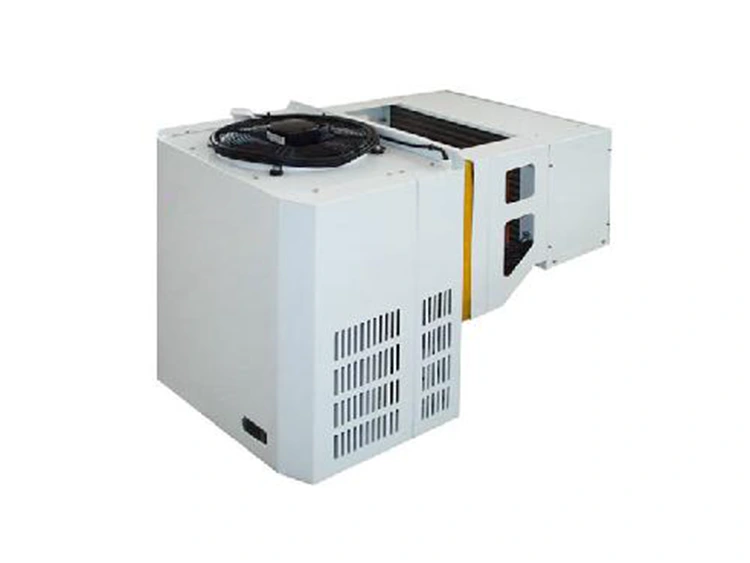

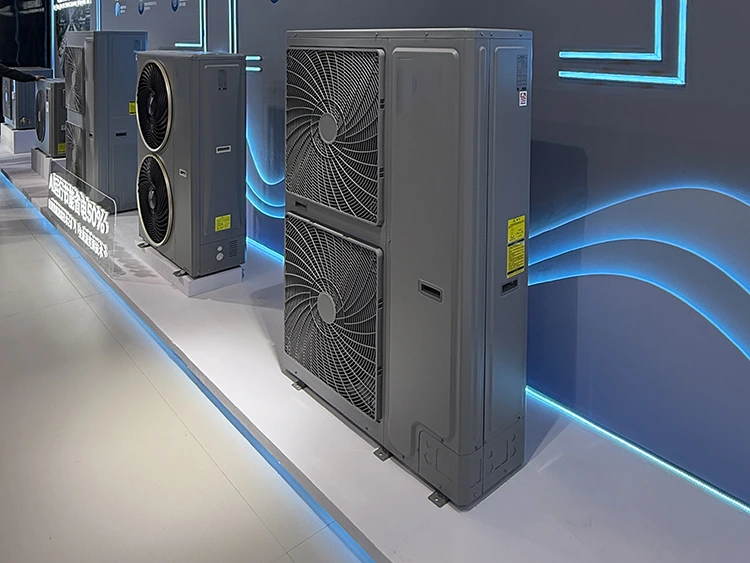

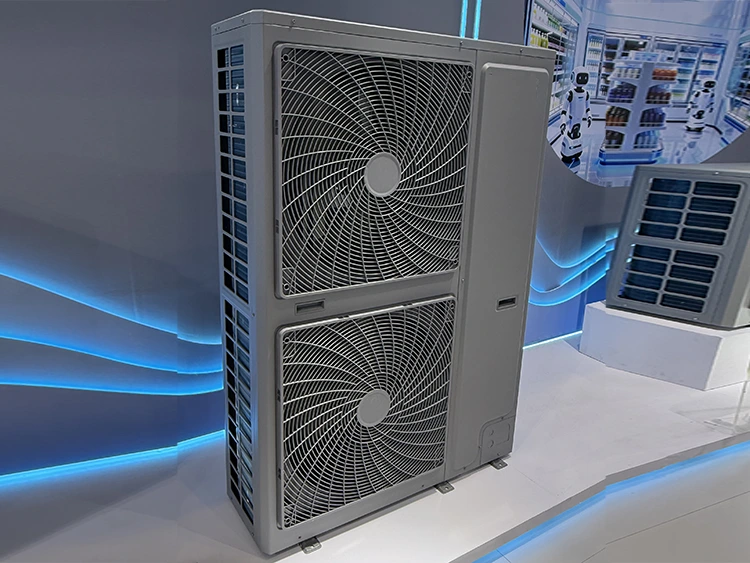

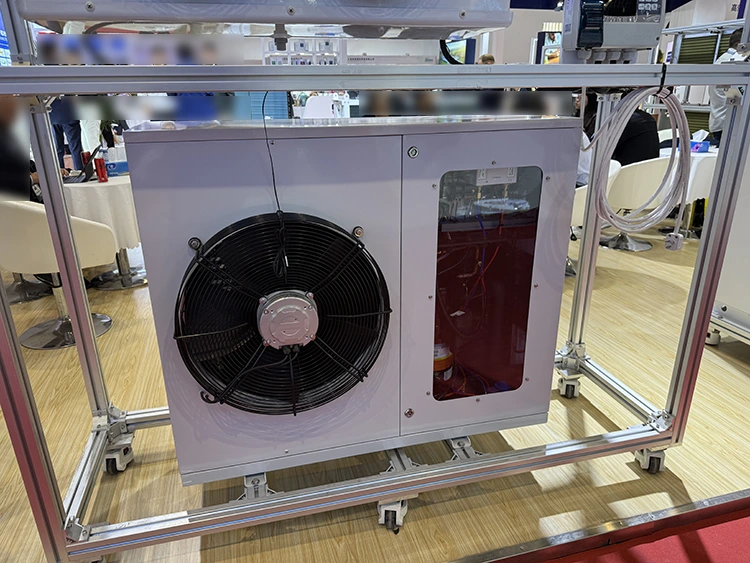

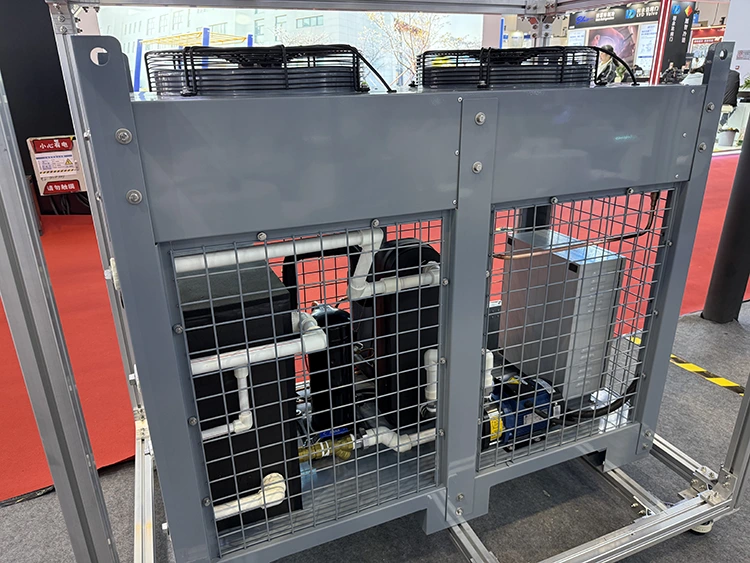

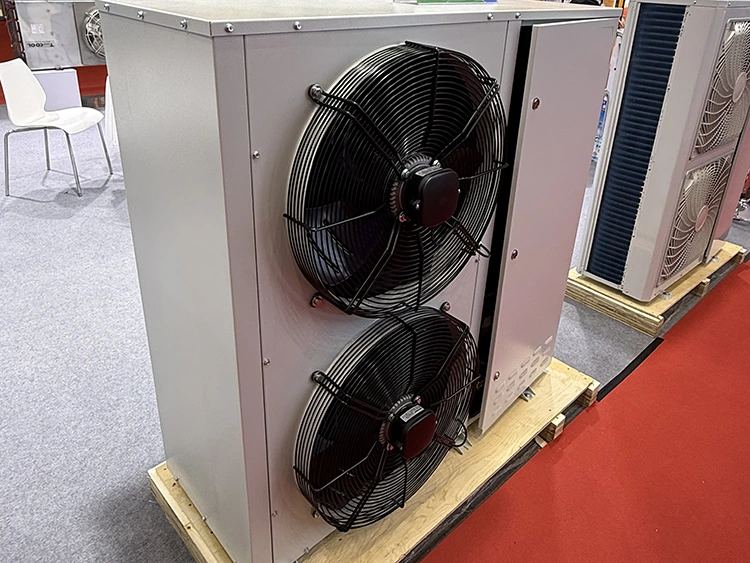

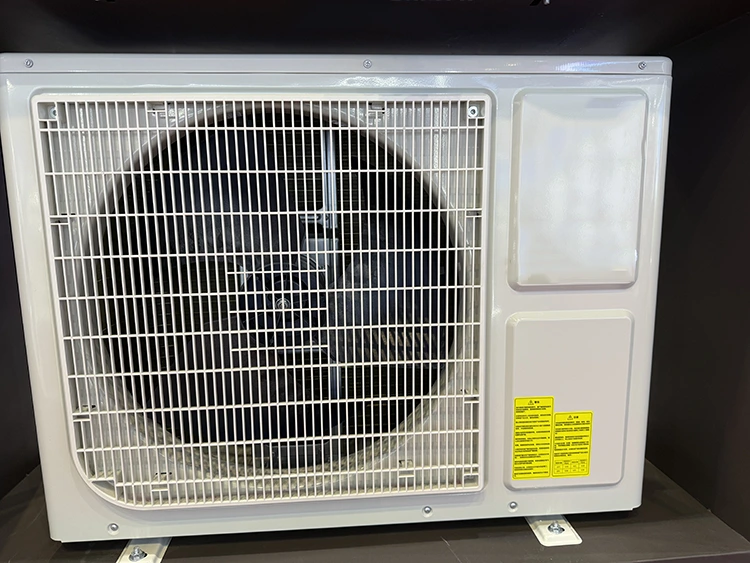

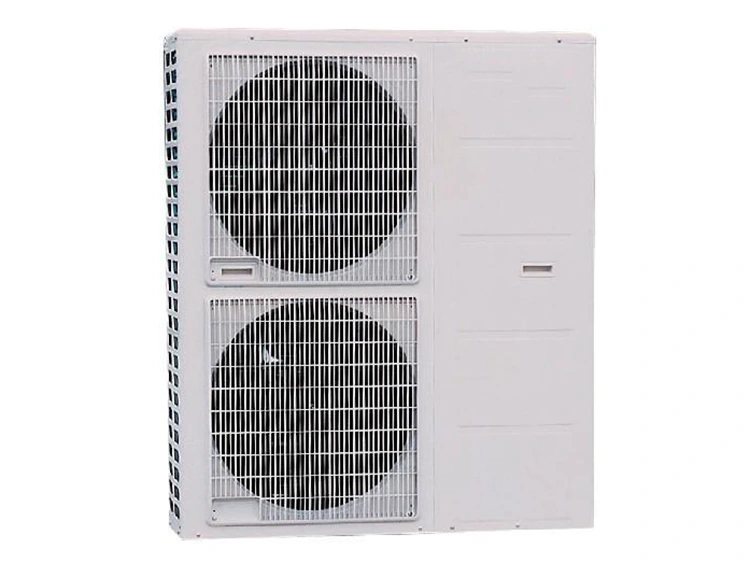

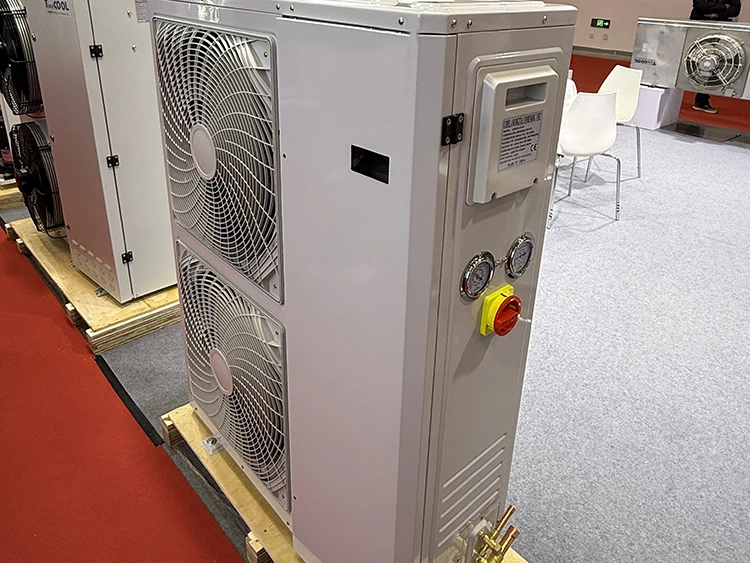

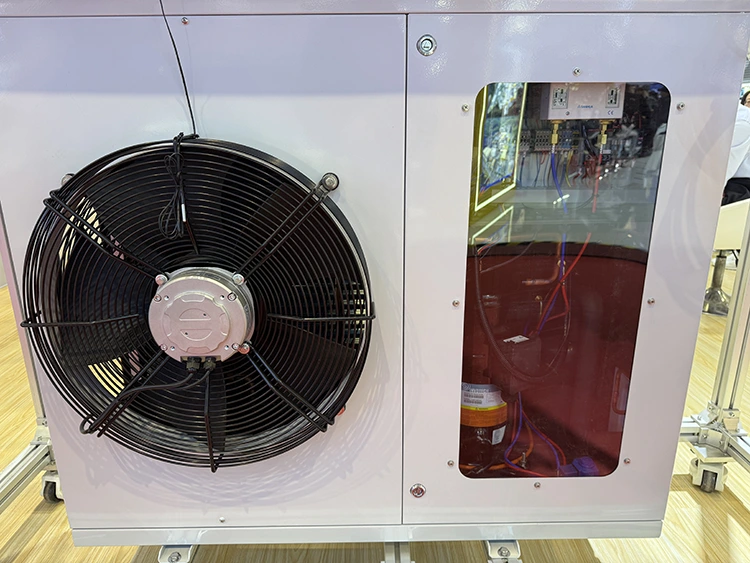

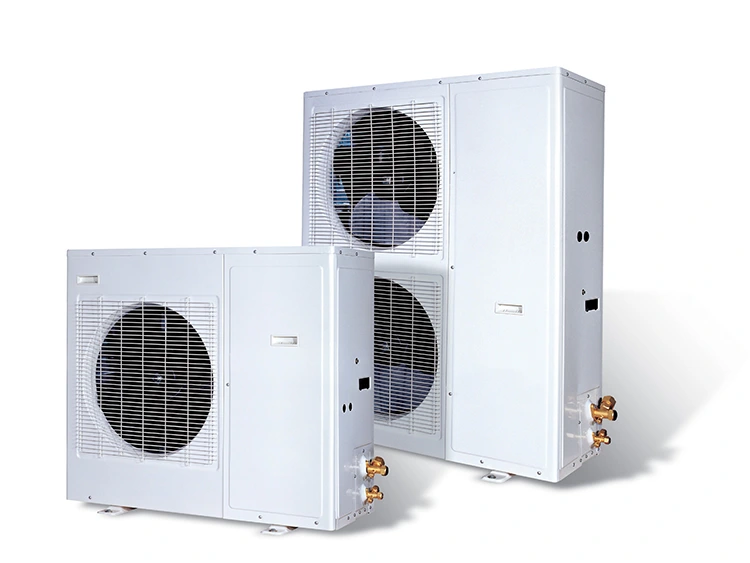

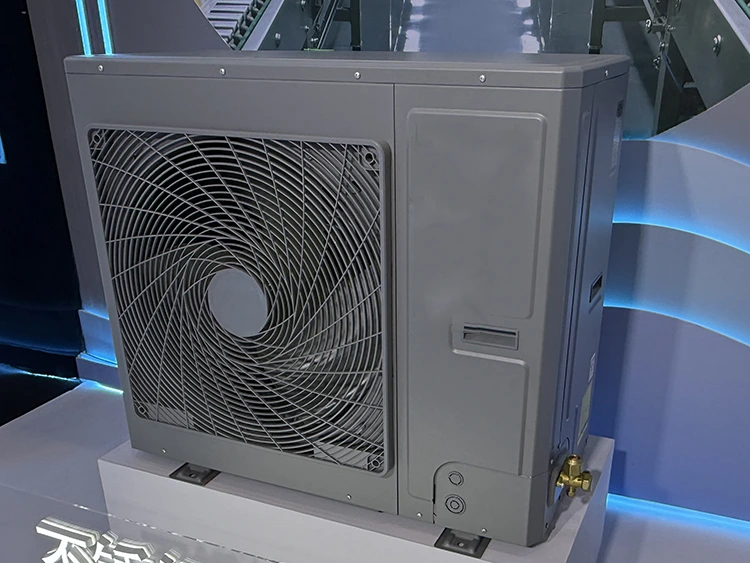

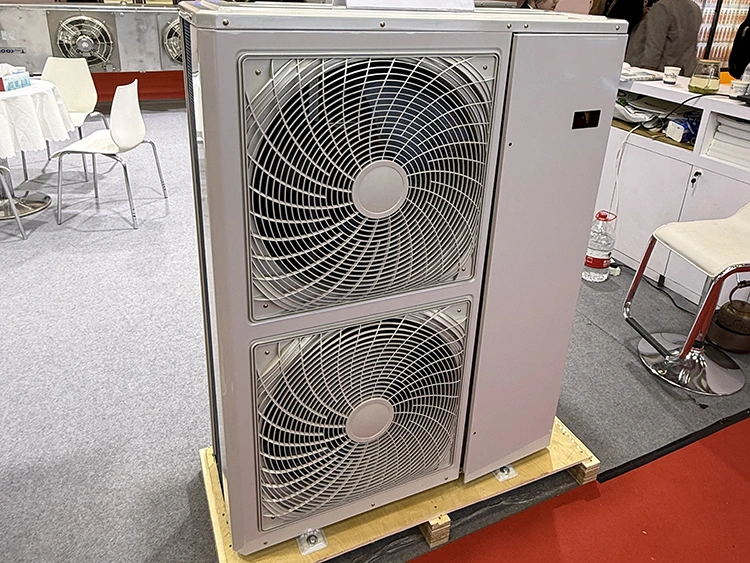

Air-Cooled Scroll Refrigeration Compressor Unit
Lynxcool manufactures Air-Cooled Scroll Refrigeration Compressor Unit which delivers fully integrated, plug-and-play cooling for small to medium applications. With zero water consumption, ultra-quiet scroll operation, and compact space-saving design, it’s ideal for supermarkets, mini cold storage, medical labs, and commercial refrigeration. Reliable, low-maintenance, and energy-efficient, this unit ensures stable temperature control and reduces operational costs.

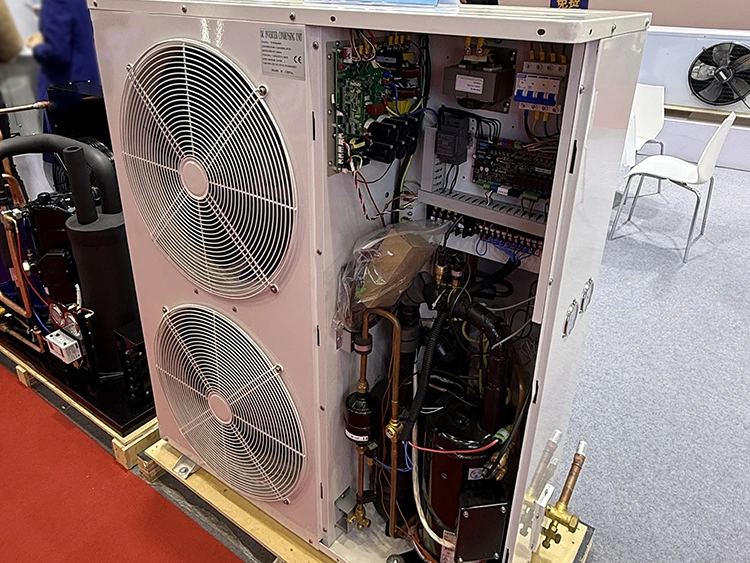

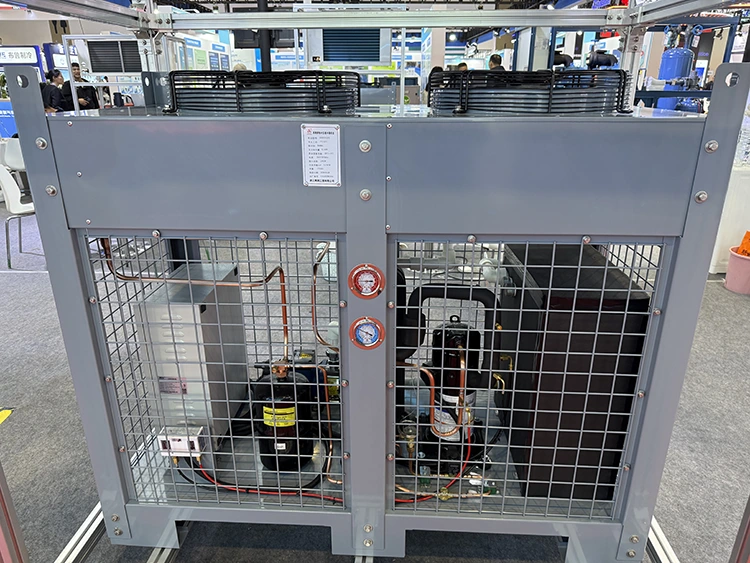

Air-Cooled Scroll Refrigeration Compressor Unit, supplied by Professional Manufacturer-- Lynxcool, is designed for high integration and operational flexibility. The unit combines a hermetic scroll compressor, EC fan condenser, liquid receiver, electronic expansion valve, and intelligent control system within a single skid-mounted framework. With plug-and-play installation, the unit is ready to run after connecting power and refrigerant lines.
Product Features
Integrated & Compact Design
● All major components assembled in a single framework.

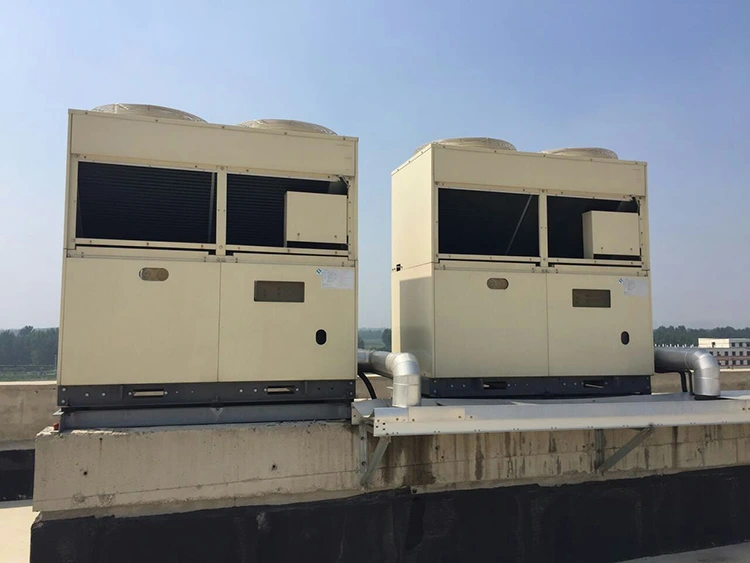

● Minimal footprint, suitable for rooftops, small mechanical rooms, balconies, and compact cold storage.
● Multiple units can operate in parallel (2–4 units) to reach 120 kW capacity.
Plug-and-Play Installation
● Fully assembled and factory-tested before delivery.
● Users only need to connect power supply and refrigerant piping.
● Rapid deployment ideal for convenience stores, mini cold rooms, and medical laboratories.
Low Maintenance & Long Life
● Scroll compressors have almost no wear parts.
● Air-cooled design avoids water treatment or tower cleaning.
● Stable operation with fewer mechanical failures and minimal servicing.
Quiet & Smooth Operation
● Scroll pistonless and valve-plate-free design of Air-Cooled Scroll Refrigeration Compressor Unit ensures low vibration.
● Noise 5–10 dB(A) lower than traditional reciprocating units.
● Ideal for hotels, laboratories, offices, and other noise-sensitive environments.
Multi-Refrigerant & Wide Capacity Range
● Supports R410A, R32, R448A, R449A, R134a.
● Single unit: 3–60 kW, Tandem parallel units: up to 120 kW.
● Flexible capacity control via staged compressor operation.
Technical Parameters
|
Parameter |
Value / Range |
|
Refrigeration Capacity Range |
3 kW — 120 kW (single or multi-scroll tandem; at standard rating conditions) |
|
Standard Rating Conditions |
Evaporation −7°C; Condensing +45°C; Ambient +35°C (ARI 520 basis) |
|
Evaporation Temperature Range |
−35°C to +15°C (single-stage; model-dependent) |
|
Condensing Temperature Range |
+30°C to +60°C (ambient-dependent) |
|
Compressor Type |
Hermetic scroll; single or multi-scroll tandem (2–4 compressors) |
|
Compressor Brand Options |
Copeland / Emerson / Panasonic (specified at order) |
|
Capacity Control |
Single: on/off; tandem: staged on/off of each scroll compressor |
|
Minimum Capacity Step (tandem) |
25–33% of total capacity (1 of 3 or 4 scrolls running) |
|
Condenser Type |
Air-cooled; V-shape or flat coil; EC inverter axial fans |
|
Condenser Fan Type |
EC electronically commutated variable-speed axial; IP54 |
|
Condensing Pressure Control |
EC fan speed modulation; floating condensing pressure |
|
Refrigerants |
R410A / R32 / R448A / R449A / R134a |
|
Liquid Receiver |
Integral; ≥ 10 minutes storage at rated capacity |
|
Expansion Device |
EEV (standard) or TXV |
|
Noise Level |
≤ 58–68 dB(A) at 1 m — 5–10 dB(A) quieter than equivalent reciprocating |
|
Skid Frame |
Compact galvanised steel; anti-vibration mounts; forklift pockets |
|
Control System |
Electronic controller (small units) / PLC + HMI (tandem); Modbus / BACnet |
|
Electrical Supply |
220 V single-phase (small) / 380 V 3-phase / 50 Hz |
|
Ambient Operating Range |
−10°C to +43°C standard; +55°C high-ambient option |
|
Footprint (typical 15 kW single) |
Approx. 850 × 500 mm (L × W); height approx. 1,200 mm |
|
Footprint (typical 60 kW multi-scroll) |
Approx. 1,800 × 900 mm (L × W); height approx. 1,500 mm |
|
Certification |
CE / ISO 9001 / PED 2014/68/EU |
Where This Unit Works Best
● Cold Storage & Cold Chain: walk-in coolers, frozen rooms, mini warehouses
● Food & Beverage Industry: central kitchens, beverage storage, meat & seafood processing
● Commercial Use: supermarkets, restaurants, convenience stores
● Medical & Pharmaceutical: vaccine storage, laboratory cold rooms
Benefits Delivered
● Zero water consumption for air-cooled design
● Compact, plug-and-play installation
● Low maintenance and high reliability
● Stable temperature control for sensitive products
● Quiet operation of Air-Cooled Scroll Refrigeration Compressor Unit minimizes disturbance
Installation, Packaging & Delivery
Installation
● Detailed drawings and P&ID provided
● Step-by-step manuals and video guides
● Optional on-site support by Lynxcool engineers
Packaging
● Export-standard wooden crates
● Shockproof and moisture-proof sealing
● Units fully assembled, leak-tested, and operationally tested
FAQ
Q1: Is it better than a water-cooled one?
A: Air-cooled units are easier to install, require less maintenance, and have lower initial investment costs.
Q2: How do I choose the right model?
A: We calculate based on the following factors: Room size, Temperature requirements, Product type, Ambient temperature. Simply send us your project details, and we will tailor a design solution for you.
Q3: What is the lifespan of the Unit?
A: With proper maintenance, it can typically last 8-12 years.
Q4: Can it operate in high-temperature environments?
A: Yes. Our units are designed to condense at temperatures up to 50°C, suitable for hot climates.
Q5: Do you support customization?
A: Of course. As a professional OEM/ODM factory, we offer the following customization services: Voltage, Refrigerant, Capacity, Control System
Installed globally for Nestlé, Coca-Cola, PepsiCo, Danone, Unilever, and Lineage Logistics, the Lynxcool Air-Cooled Scroll Refrigeration Compressor Unit proves reliable in cold storage, food processing, and pharmaceutical environments.
