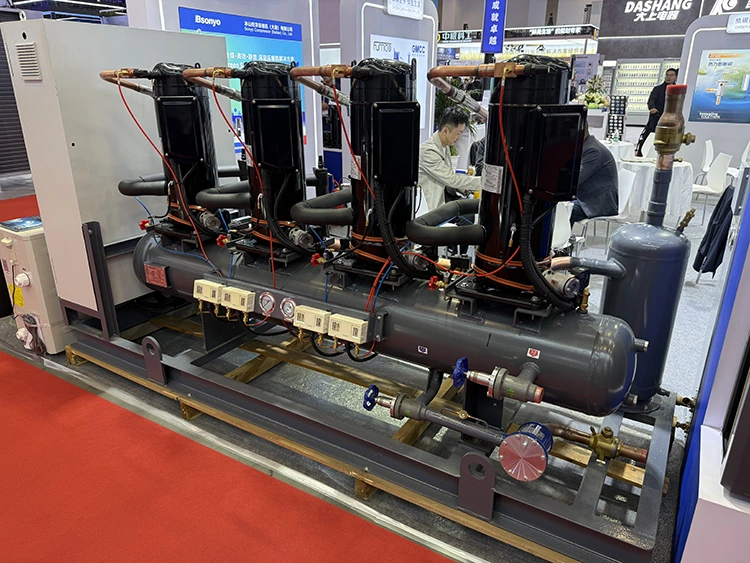

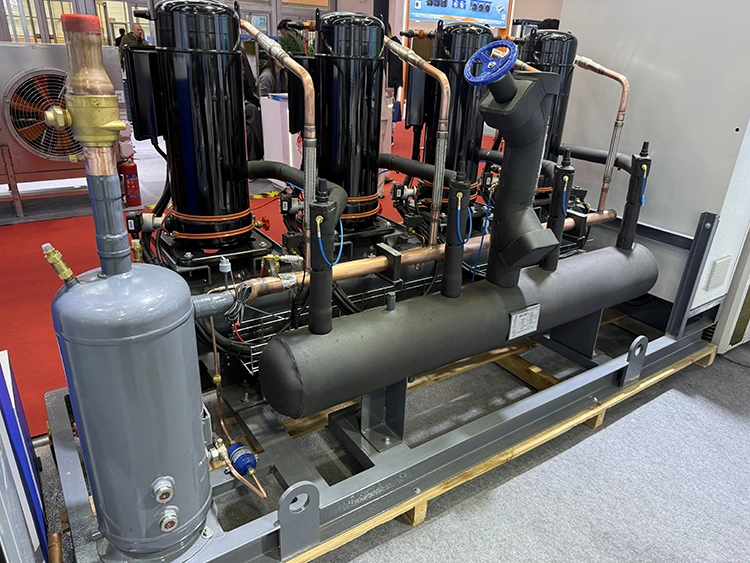

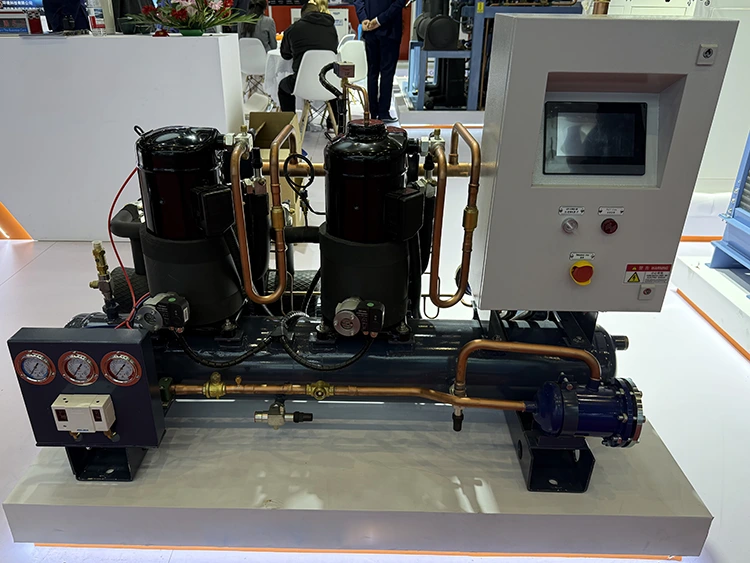

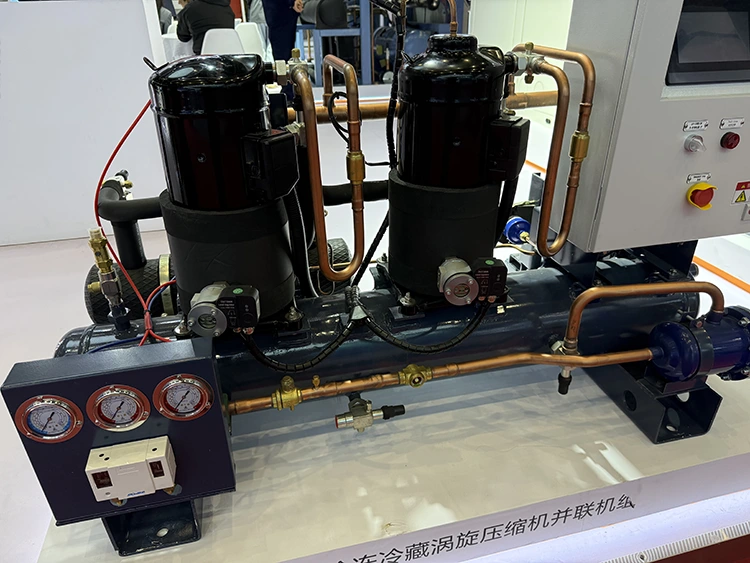

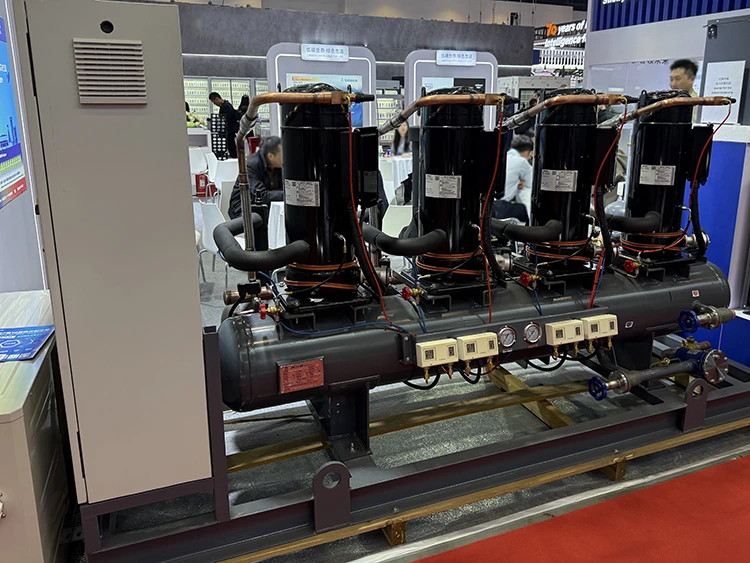

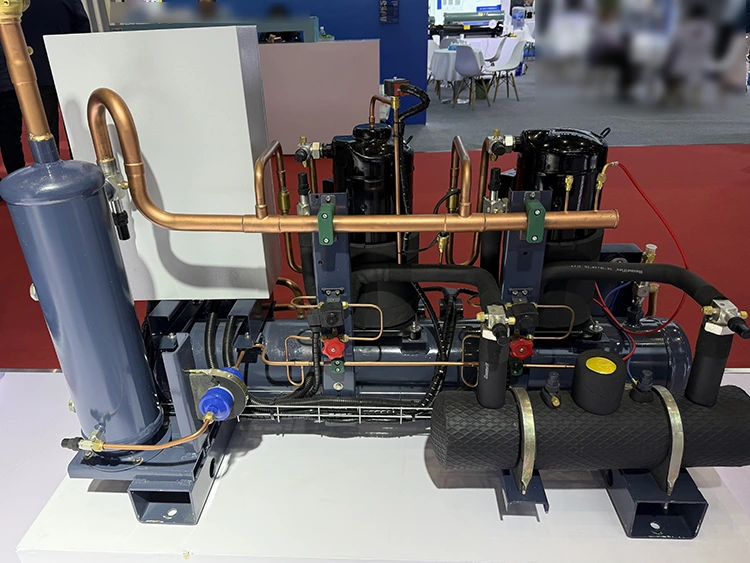

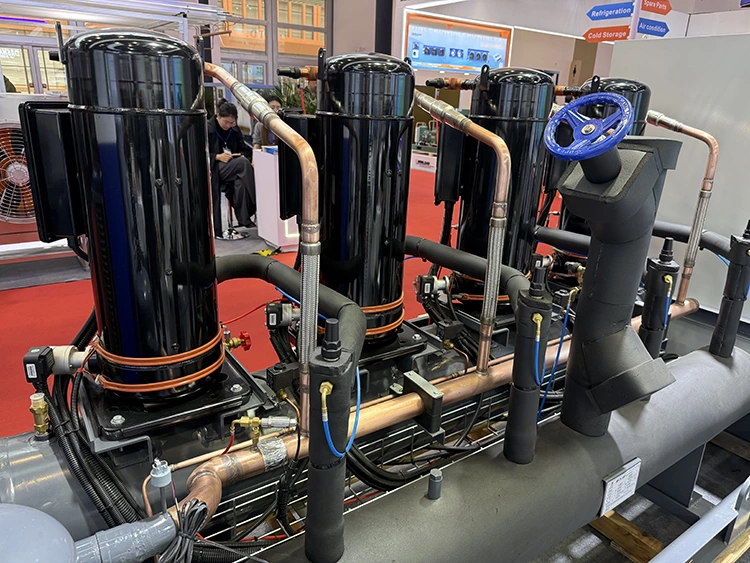

Water-Cooled Scroll Refrigeration Compressor Unit

These Water-Cooled Scroll Refrigeration Compressor Units are widely used in high-end hotels, hospitals, laboratories, pharmaceutical plants, data centers, and central air conditioning rooms. They are the preferred cooling solution for low-noise, low-vibration indoor installation environments.

What are the advantages of these products?

Extremely Quiet: No outdoor fan; the scroll compressor operates smoothly, with noise levels of only 52–62 dB(A) at 1 meter.

Energy-Efficient: Water cooling lowers condensing temperature, increasing COP by 12–20% and reducing operating costs.

Scroll Compressor: Low vibration, no piston valves, 70% fewer moving parts, and continuous, stable output.

Multiple Specifications: Single unit 5–30 kW, multi-unit series 20–120 kW, meeting diverse needs.

Multiple Refrigerant Compatibility: R410A / R32 / R448A / R449A / R134a.

GMP and Pharmaceutical Support: Optional DQ/IQ/OQ documentation packages, compliant with GMP production standards.

Technical Parameters

In which fields can this equipment be used?

Hotels and Restaurants: Cold storage rooms, wine cellars, minibars; noise level below 55 dB(A).

Hospitals and Medical Facilities: Pharmaceutical cold storage, operating room air conditioning, laboratories; low vibration ensures the safety of precision equipment.

Pharmaceuticals and Biotechnology: Reactor cooling, fermentation temperature control, freeze dryer condensation; GMP compliant.

Data Centers and IT: Precision air conditioning ±0.5°C; indoor installation saves roof space and reduces PUE.

Laboratories and Environmental Testing: Low vibration, stable temperature control; suitable for sample and standard storage.

Key Features

1.Plate Condenser Option: The Water-Cooled Scroll Refrigeration Compressor Unit boasts a compact design, saving 20-30% of space, making it suitable for server room environments with limited space.

2. Multi-scroll series + alternating operation: PLC manages compressor start/stop, balancing accumulated operating hours and extending lifespan.

3. EEV overheat control: Fast response to compressor start/stop, evaporation temperature accurate to ±2°C.

4.GMP documentation package: DQ/IQ/OQ, instrument calibration certificate, 21 CFR Part 11 data logging optional.

Why Choose Lynxcool?

Made in China: Over 12 years of experience in water-cooled scroll compressors, factory assembled, CE/PED certified.

Noise Guarantee: Provides design noise data for easy acoustic assessment in hotels and hospitals.

Cost Advantage: Chinese-made units are 25-38% cheaper than comparable European units, without compromising quality.

Extensive Case Studies: 3,000+ units installed in over 30 countries worldwide, covering hotels, hospitals, pharmaceuticals, and laboratories.

Comprehensive After-Sales Service: Provides installation guidance, user manuals, and remote technical support.

FAQ

Q1: Why is the Water-Cooled Scroll Refrigeration Compressor Unit the quietest refrigeration unit?

A: Water cooling eliminates outdoor fan noise, and the scroll compressor operates smoothly without piston impact noise.

Q2: How is condensate supplied?

A: An inlet water temperature of +28°C ~ +32°C is optimal, which can come from a cooling tower or heat recovery water system.

Q3: What is the difference between a BPHE condenser and a shell-and-tube condenser?

A: BPHE is compact and takes up less space, but requires chemical descaling; shell-and-tube condensers can be mechanically cleaned and are suitable for environments with high water hardness.

Q4: Can pharmaceutical plants use the Water-Cooled Scroll Refrigeration Compressor Unit?

A: Yes, a complete GMP documentation package is provided, and the low vibration meets pharmaceutical environmental requirements.

Q5: What is the maintenance cycle?

A: Monthly inspection: compressor, refrigerant sight glass, water flow.

Quarterly inspection: condensate chemical indicators.

Annual inspection: compressor current, refrigerant leakage, safety devices, EEV calibration.
