Industrial Dock Seal and Shelter
The Industrial Dock Seal and Shelter, designed and manufactured by Lynxcool in China, is a professional sealing solution for loading docks, eliminating gaps between the truck body and building facades during loading and unloading. It creates a near-airtight sealed space, effectively preventing the infiltration of warm air, dust, insects, and rainwater, while significantly reducing cold air loss and refrigeration energy waste—crucial for temperature-controlled environments and general logistics.
Three Core Product Types
Industrial Dock Seal and Shelter includes three different types to meet a variety of applications and sealing performance requirements.

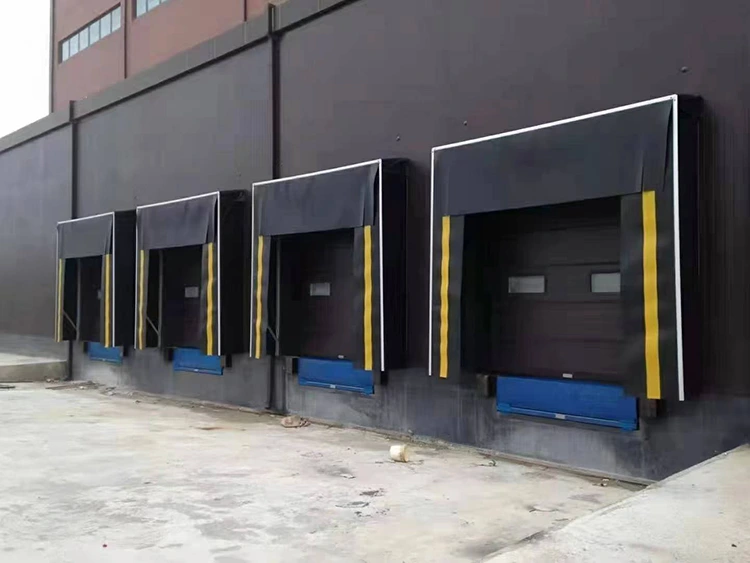

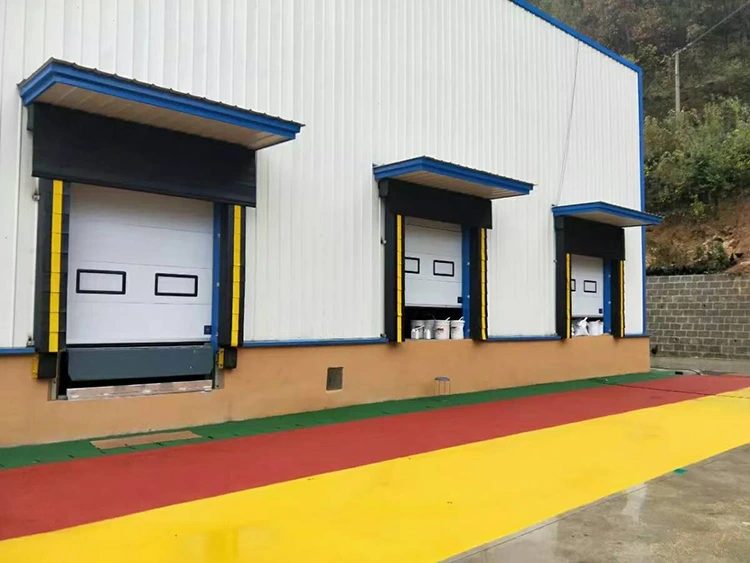

1. Mechanically Folding Loading Platform Canopy: Constructed with double-layer PVC-coated polyester fiber fabric and a galvanized steel hinge frame. Folds to cover the truck body without power; simply touch the surface. Suitable for general warehousing, durable, cost-effective, and compatible with various vehicle types.

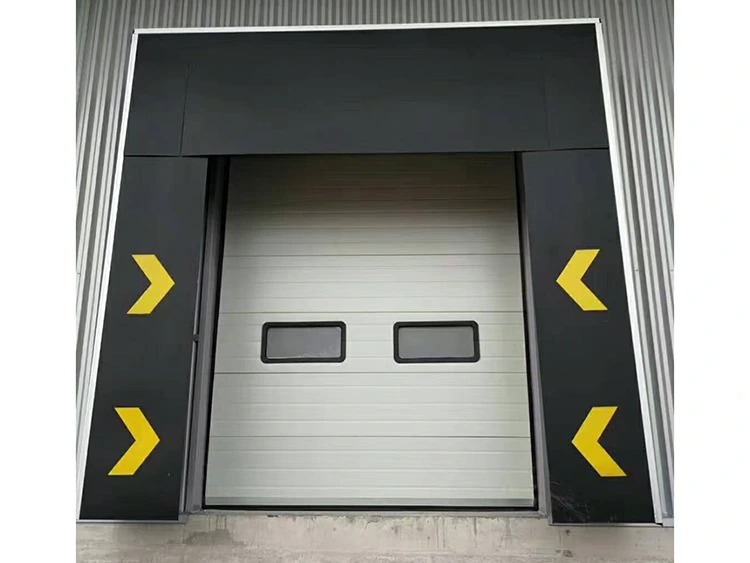

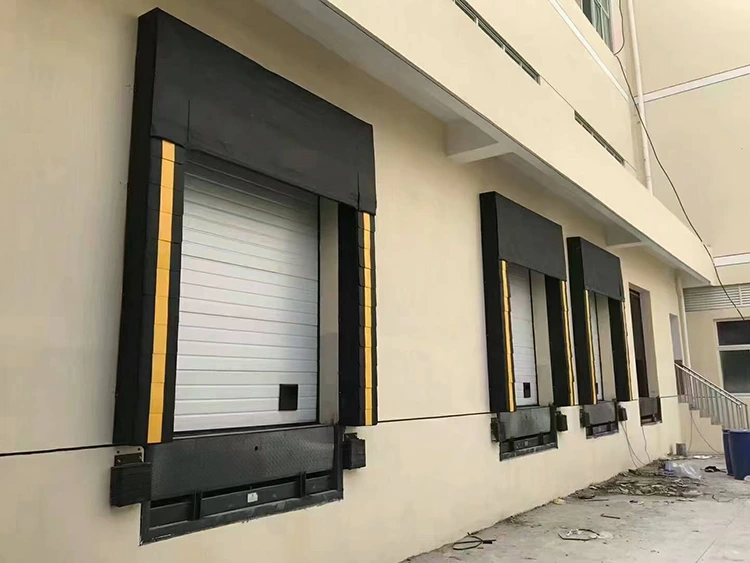

2. Foam Loading Platform Sealing Strip: High-resilience polyurethane foam core covered with wear-resistant, wrinkle-resistant PVC. Excellent weather resistance, making it the standard choice for temperature-controlled operations.
3. Inflatable Loading Platform Sealing Strip: High-frequency welded L-shaped PVC air bladder, inflated by an electric pump after loading and unloading. Automatically adapts to width variations of ±150mm and height variations of ±200mm for maximum sealing performance. Designed specifically for high-end cold chain, pharmaceutical, and modified atmosphere packaging applications.
Why Choose Lynxcool?
1. Comprehensive Product Range: All three types of seals are supplied by the same vendor – we recommend the product best suited to your application, not the most profitable option.
2. 100% Customized: Each unit is manufactured to your dock dimensions and vehicle configuration, with pre-production drawings provided for your confirmation.
3. Cold Chain Expertise: Over 15 years of experience in cryogenic environment materials engineering, specifically designed for icy/wet dock environments.
4. Integrated Dock Solutions: Providing complete systems of dock seals, levelers, and doors, avoiding installation incompatibility issues.
Technical Parameters
|
Parameter |
Value / Range |
|
Product Types Available |
Mechanical Folding Shelter / Foam Sponge Seal / Inflatable Seal |
|
Standard Opening Width (clear) |
2,500 mm — 4,000 mm (custom widths available) |
|
Standard Opening Height (clear) |
2,800 mm — 4,500 mm (custom heights available) |
|
Side Panel Projection (depth) |
600 mm — 1,000 mm (vehicle body accommodation depth) |
|
Header Panel Projection (depth) |
400 mm — 800 mm |
|
Mechanical Shelter — Fabric |
Double-layer polyester with PVC coating; UV and abrasion resistant |
|
Mechanical Shelter — Frame |
Galvanised steel with piano hinge; top panel with drainage slope |
|
Foam Seal — Core Material |
High-resilience polyurethane foam; compression ratio ≥ 70% |
|
Foam Seal — Facing |
Abrasion-resistant pleated PVC; replaceable facing standard |
|
Foam Seal — Wind Resistance |
Suitable for wind loading up to 120 km/h |
|
Inflatable Seal — Bladder Material |
L-shape PVC airbag; high-frequency welded seams; 0.2–0.5 bar operating pressure |
|
Inflatable Seal — Inflation System |
Electric air pump; automatic inflation on truck detection; deflation on truck departure |
|
Inflatable Seal — Adaptation Range |
±150 mm width variation; ±200 mm height variation per cycle |
|
Frame Material |
Galvanised steel backing frame; powder-coated or PVC-clad exterior |
|
Exterior Cladding |
PVC-coated fabric (standard); galvanised steel sheet (option) |
|
Impact Protection Strips |
High-visibility yellow polyurethane or rubber bumpers on side panel faces |
|
Colour — Standard |

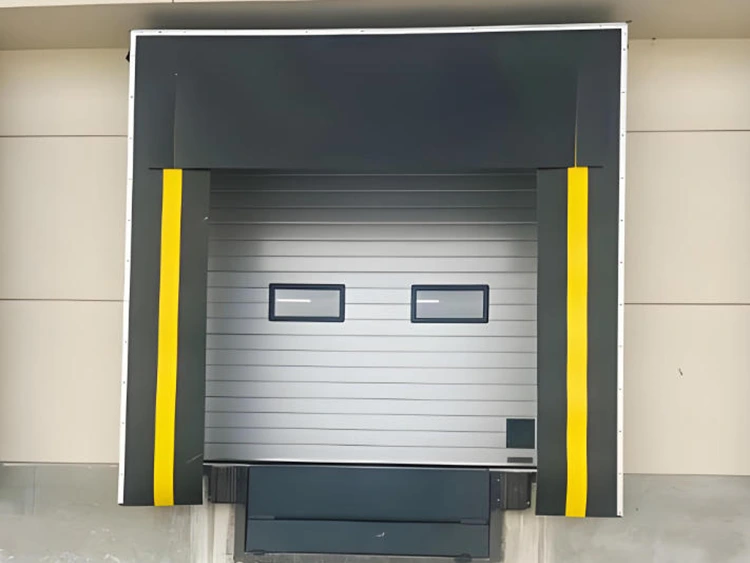

Dark grey / anthracite PVC cladding with yellow impact strips (as shown) |
|
Mounting |
Bolt-fixed to building facade; adjustable mounting brackets; all fixings supplied |
|
Service Life |
8–15 years (application and maintenance dependent; fabric and foam replaceable) |
|
Operating Temperature Range |
−30°C to +60°C ambient |
|
Certification |
ISO 9001 production; CE compatible; fire retardant fabric options available |
Applications
Our Industrial Dock Seal and Shelter are widely used across various industries, providing efficient solutions to help customers improve operational efficiency and energy savings:

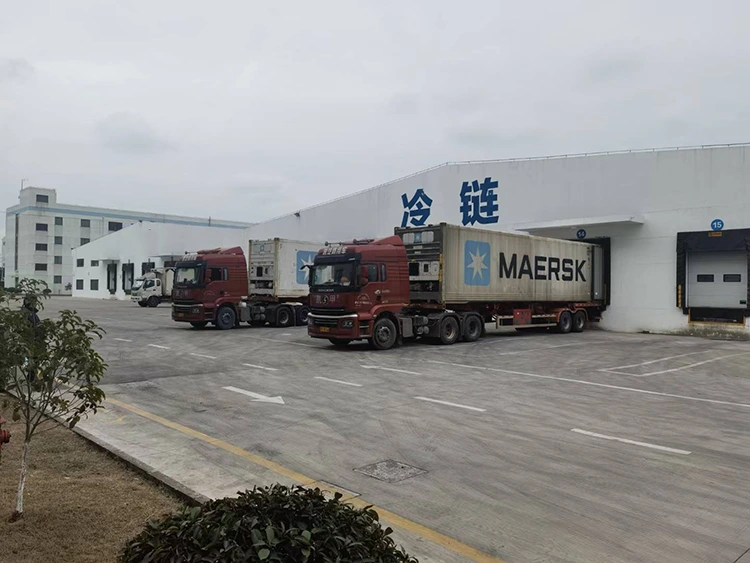

1. Cold Storage and Frozen Distribution: Reduces air infiltration by 85%–95%, significantly lowering refrigeration energy consumption. Foam or inflatable seals are recommended for optimal insulation.
2. Food Processing: Effectively blocks insects, rodents, dust, and rainwater, maintaining hygiene standards. Foam seals withstand daily contact and washing.
3. Pharmaceutical Logistics: Inflatable seals meet GDP requirements, minimize temperature fluctuations, and support compliance documentation.
4. General Logistics and E-commerce: Mechanical refrigerated hoods provide cost-effective wind and dust protection, ideal for mixed fleets.
5. Refrigerated Retail Logistics: Foam seals maintain a refrigerated environment without consuming excessive energy and can withstand hundreds of vehicle passes per day.
If you are interested in our Industrial Dock Seal and Shelter, please contact us for customized advice and solutions.
