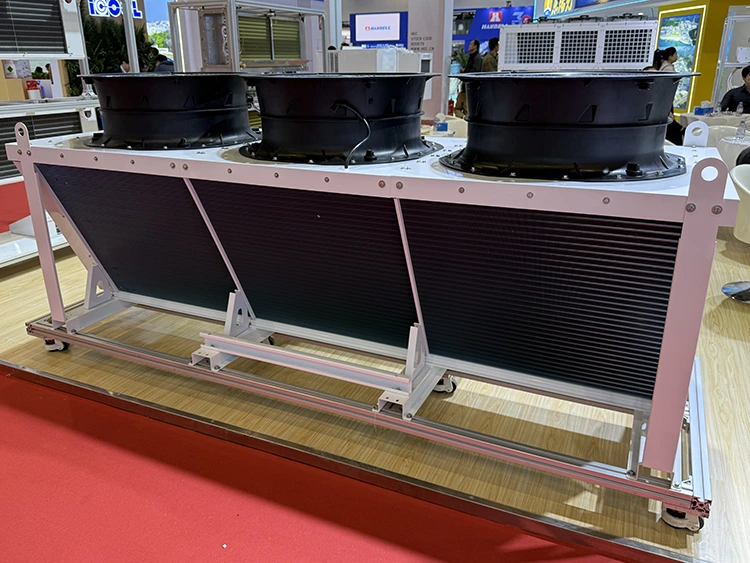

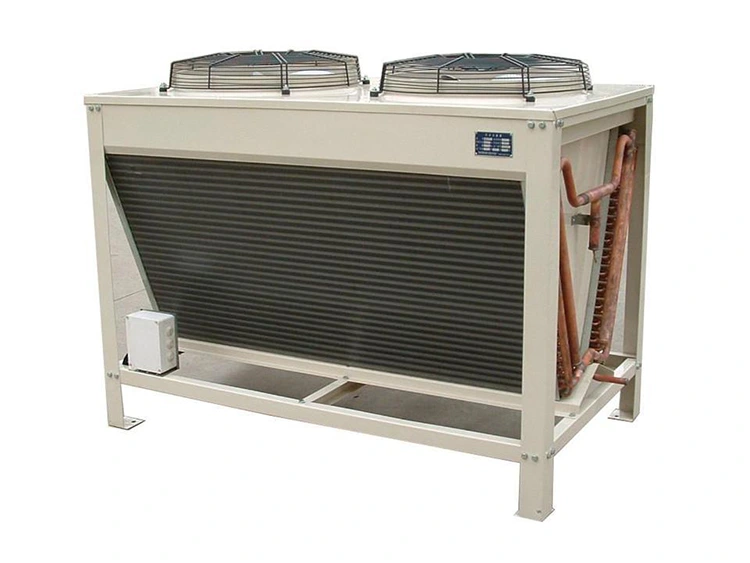

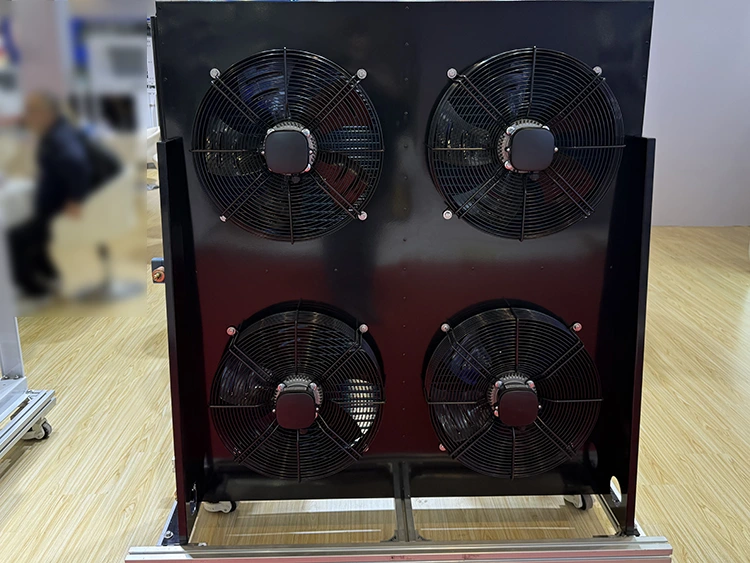

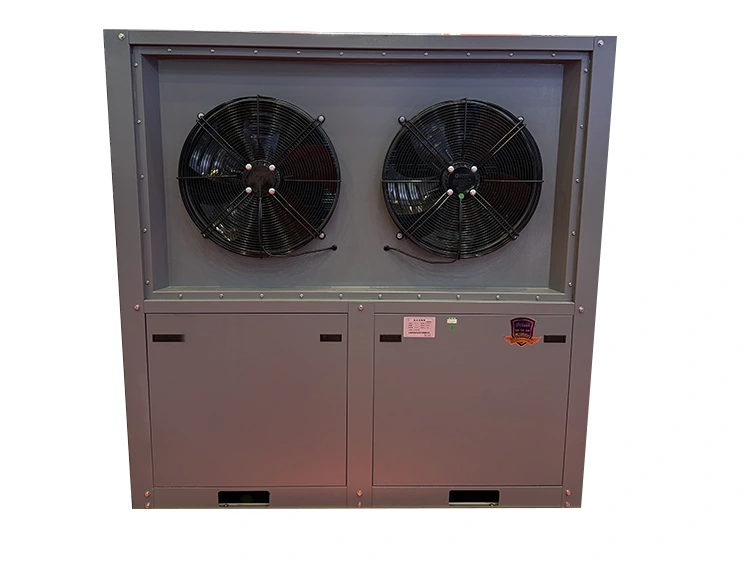

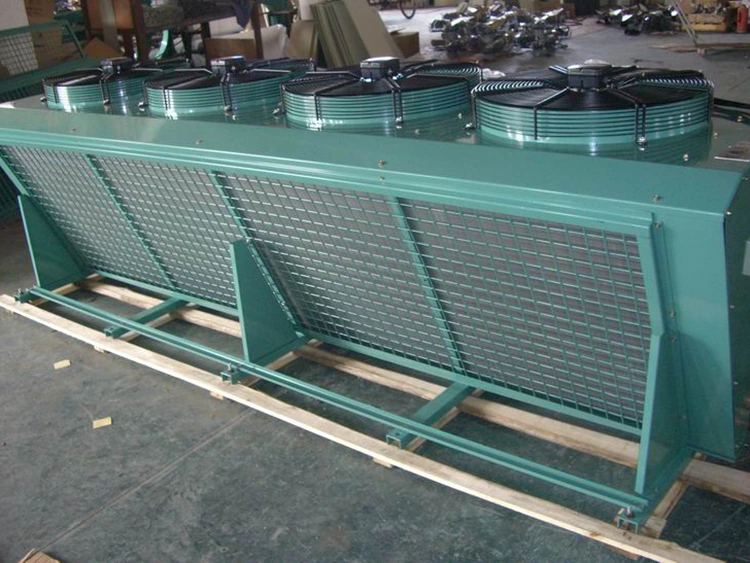

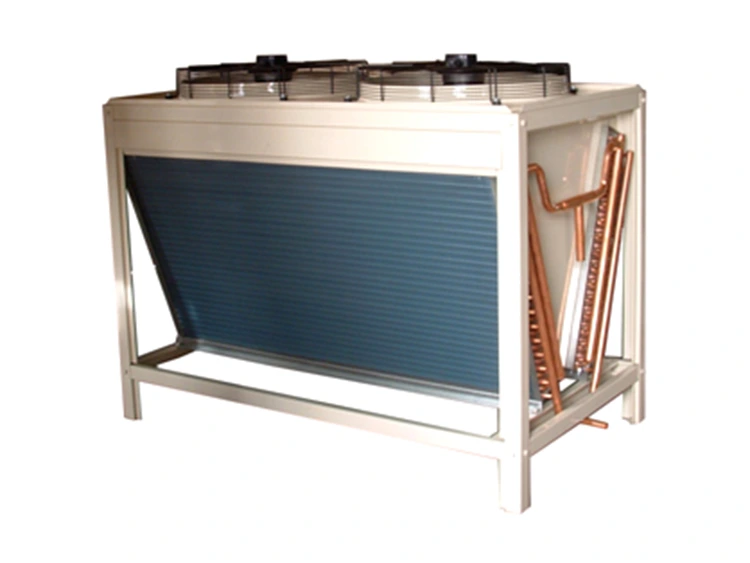

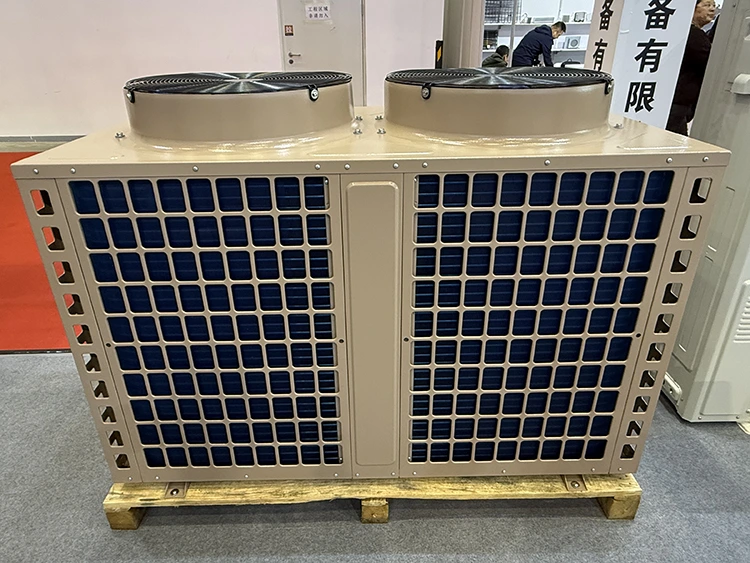

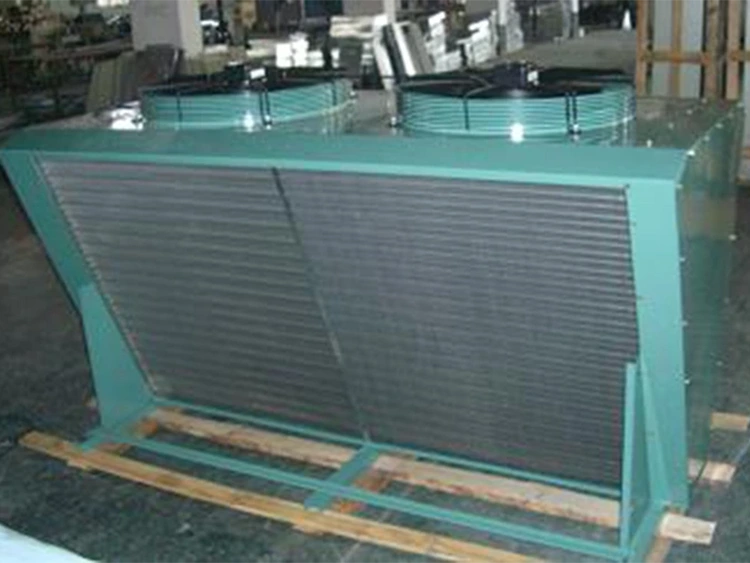

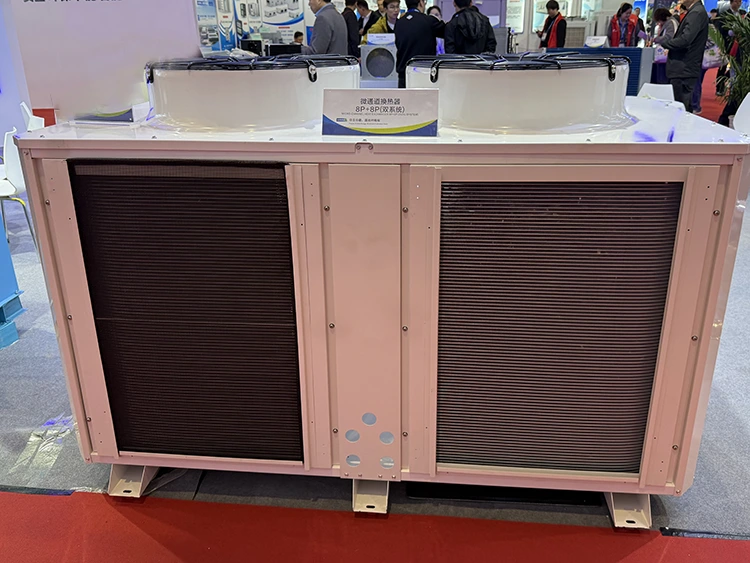

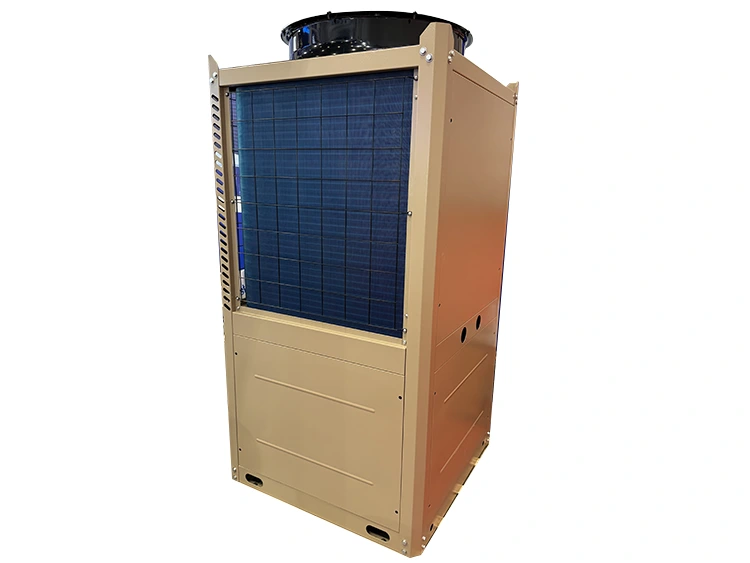

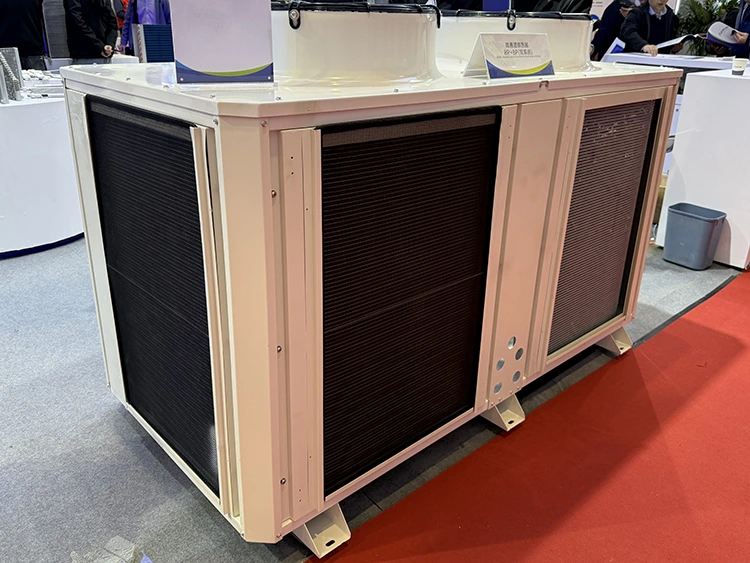

Air-Cooled Condenser
Lynxcool Air-Cooled Condenser produced in China, offers high-efficiency heat rejection without water supply. Perfect for commercial cold storage, supermarket refrigeration, or industrial process cooling, it features aluminium finned coils, V-shape or flat horizontal configurations, EC inverter fans, and multi-refrigerant compatibility. Reliable, low-maintenance, and globally exported, ideal for bulk procurement and system integration.
The Air-Cooled Condenser is designed and manufactured by Lynxcool in China, delivering high-performance and reliable air-cooled solutions worldwide. Available in V-shape, A-frame, flat horizontal, and remote configurations, it can adapt to any installation environment. The coils use aluminum fins mechanically bonded to copper or full-aluminum tubes and are leak-tested with dry nitrogen at 1.5× design pressure to ensure safety and reliability.
Working Principle
The working principle of the condenser is to reject heat from high-pressure, high-temperature refrigerant vapor by cooling it with air, converting it back into liquid. The process can be summarized in three steps:
1.Refrigerant Circulation: The refrigerant absorbs heat in the evaporator, then is compressed to high pressure and temperature before entering the condenser coils.
2.Air Heat Exchange: Air passes through the finned tubes via fans, carrying away heat and condensing the refrigerant into liquid.
3.Pressure Control and Energy Saving: EC inverter fans or pressure-controlled fan cycling maintain stable condensing pressure, reducing compressor load and improving system efficiency.
This design ensures uniform heat transfer, high efficiency, and eliminates the need for water cooling, making it suitable for water-limited environments. Optimized V-shaped and flat coil arrangements maximize heat exchange in compact spaces.
Core Features and Advantages
The Lynxcool Air-Cooled Condenser integrates high-efficiency cooling, intelligent energy control, and durable materials to provide comprehensive refrigeration solutions. Whether on rooftops, in small plant rooms, or in remote large systems, it ensures stable performance and long-term reliability.

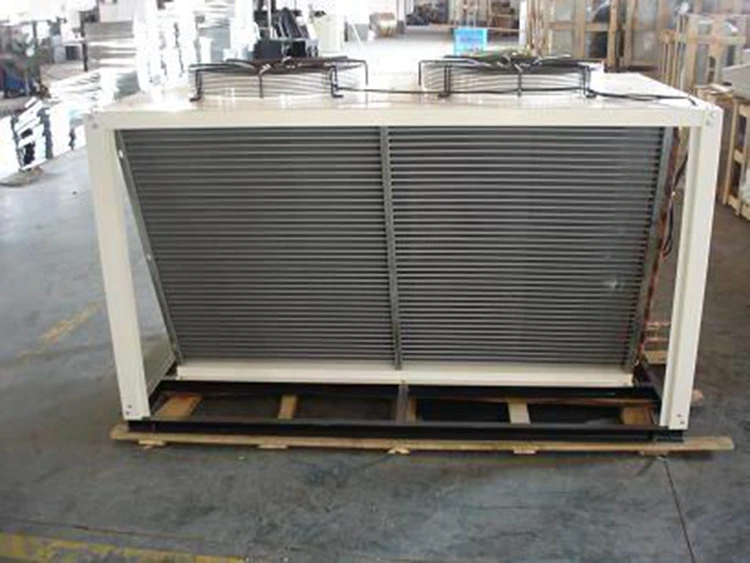

● High-Efficiency Coil Design: Aluminum fins bonded to copper or aluminum tubes, with multiple fin types (flat, louvered, wavy) and spacing 1.0–3.5 mm, maximize heat transfer efficiency.

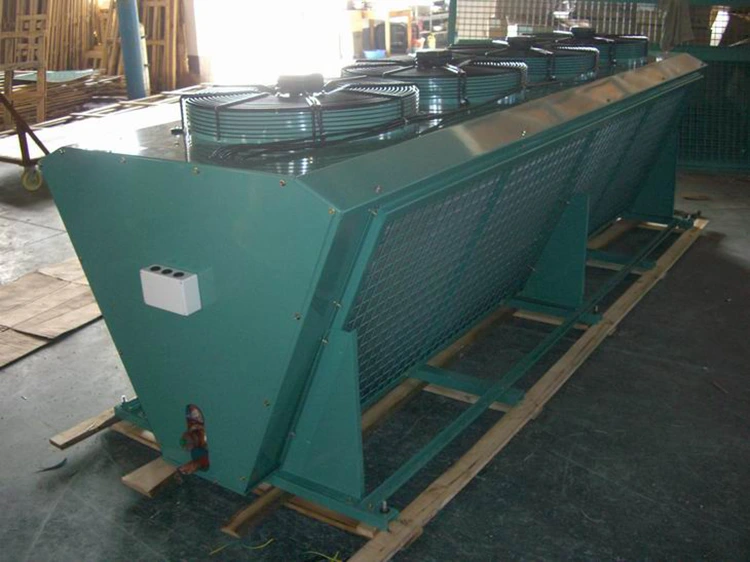

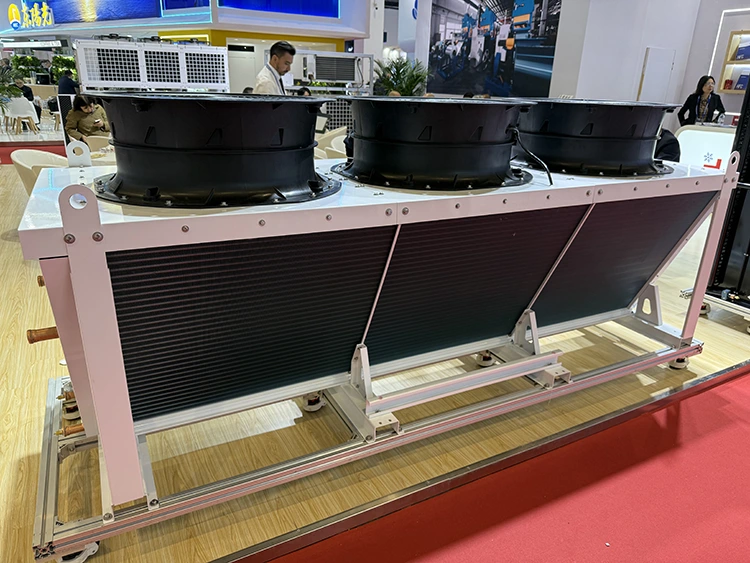

● Versatile Configurations: V-shape, A-frame, flat horizontal, and remote installations meet diverse spatial and project requirements.

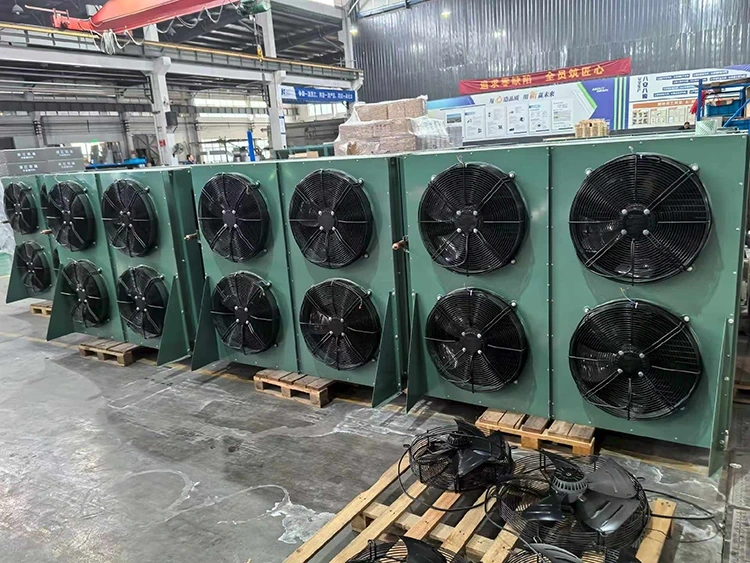

● Energy-Saving Fan Control: EC inverter fans adjust speed according to condensing pressure, reducing energy consumption by 12–30% under partial load while lowering noise levels.
● Corrosion Protection: Gold epoxy, polyurethane dip coating, or full anti-corrosion options suitable for coastal, industrial, and agricultural environments.
● Multi-Refrigerant Compatibility: Supports R134a, R404A, R507A, R448A, R449A, R410A, R22, and high-pressure CO₂ systems for HFC/HFO and transcritical/cascade applications.
With these features, the Lynxcool Air-Cooled Condenser improves system efficiency, lowers operating costs, and reduces maintenance requirements, ensuring reliable and stable operation across all refrigeration applications.
Applications and Suitable Users
The Air-Cooled Condenser is widely used in commercial, industrial, and food-processing sectors. Typical applications include:
● Commercial Cold Storage: Roof or yard-mounted remote condensers integrate seamlessly with refrigeration units for large-scale cold storage.
● Supermarket Central Systems: Roof-mounted remote condensers compatible with R404A/R448A/R449A refrigerants, reducing energy consumption by 15–25%.
● Food Processing & Industrial Refrigeration: Provides precise temperature control and efficient heat exchange, ensuring production line consistency.
● CO₂ Transcritical & Cascade Systems: CO₂-grade coils support high-pressure (>130 bar) or low-pressure (<50 bar) systems.
Main users include refrigeration contractors, system integrators, large cold chain operators, OEM equipment manufacturers, and cold storage operators. Regardless of project scale, the Lynxcool Air-Cooled Condenser ensures high-efficiency operation with low noise.
Technical Parameters
|
Parameter |
Value / Range |
|
Heat Rejection Capacity |
2 kW — 2,000 kW (single unit) |
|
Condensing Temperature Range |
+25°C to +60°C |
|
Ambient Design Temperature |
Up to +43°C standard; +55°C high-ambient option |
|
Refrigerant-Side Design Pressure |
28 bar / 42 bar (CO₂ high-pressure option) |
|
Configuration Types |
V-shape (A-frame) / Flat horizontal / Remote / Roof-mounted |
|
Coil Construction |
Aluminium fins on copper tubes (standard); all-aluminium option |
|
Fin Type |
Flat / Louvred / Wavy — by duty and air velocity |
|
Fin Spacing |
1.0 — 3.5 mm (application-dependent) |
|
Tube Diameter |
7 mm / 9.52 mm / 12.7 mm — by circuit design |
|
Coil Coating Option |
Epoxy, polyurethane, or gold-fin anti-corrosion coating |
|
Fan Type |
Axial propeller (standard); EC inverter option |
|
Fan Motor Protection |
IP54 standard; IP65 option |
|
Fan Speed Control |
Fixed-speed / EC inverter variable-speed / Pressure switch cycling |
|
Refrigerants Supported |
R134a / R404A / R507A / R448A / R449A / R410A / R22 / CO₂ |
|
Frame Material |
Hot-dip galvanised steel or powder-coated mild steel |
|
Operating Ambient Range |
−10°C to +55°C (model-dependent) |
|
Noise Level |
≤ 55–72 dB(A) at 1 m (fan count and speed dependent) |
|
Connection Type |
Copper ODS brazed stubs or SAE flare / Flanged for large units |
|
Coil Leak Test |
Dry nitrogen at 1.5× design pressure; factory certificate issued |
|
Unit Dimensions (typical 100 kW) |
2,000 × 800 × 1,400 mm (L × W × H) |
|

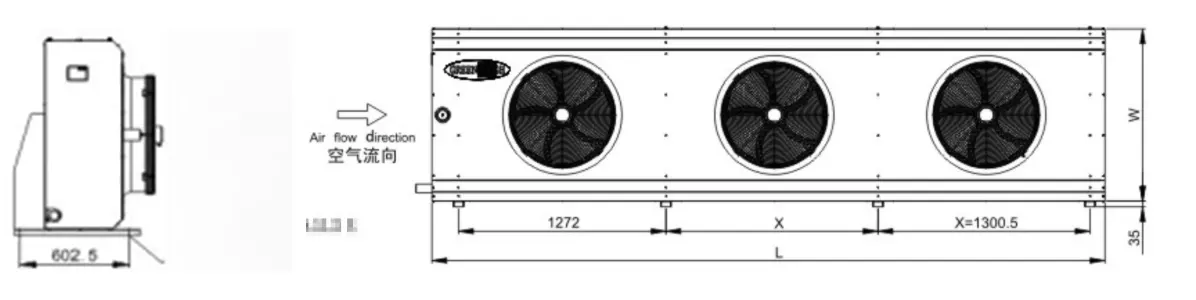

Fin spacing: 2.2 mm |
||||||||||
|
Type model |
C1-010 |
C1-011 |
C1-012 |
C1-017 |
C1-020 |
C1-023 |
C1-025 |
|||
|
Heat exchange capacity |
R404A |
△ |
KW |
9.59 |
11.03 |
12.32 |
17.14 |
20.03 |
23.11 |
25.38 |
|
Y |
15.47 |
17.99 |
20.65 |
22.66 |
||||||
|
R22 |
D |
9.34 |
10.65 |
11.70 |
16.89 |
19.58 |
22.15 |
24.87 |
||
|
Y |
15.19 |
17.51 |
19.72 |
22.12 |
||||||
|
Air Flow blowing rate |
△ |
M³/h |
2692 |
2539 |
2292 |
5717.00 |
5330.00 |
4718.00 |
7701.00 |
|
|
Y |
4874.00 |
4635.00 |
4220.00 |
6513.00 |
||||||
|
Fan Motor fan electromotor |
△ |
Phase |
1 |
1 |
1 |
3 |
3 |
3 |
3 |
|
|
Y |
||||||||||
|
△ |
w |
175 |
175 |
175 |
540.00 |
540.00 |
540.00 |
790.00 |
||
|
Y |
380.00 |
380.00 |
380.00 |
490.00 |
||||||
|
△ |
A |
0.77 |
0.77 |
0.77 |
1.05 |
1.05 |
1.05 |
1.45 |
||
|
Y |
0.68 |
0.68 |
0.68 |
0.89 |
||||||
|
Fan electric fan |
No.xφ |
1x1x350 |
1x1x350 |
1x1x350 |
1x1x450 |
1x1x450 |
1x1x450 |
1x1x500 |
||
|
Sound Pressure Level Noise |
△ |
DB(A)10m |
31 |
31 |
31 |
43.00 |
43.00 |
43.00 |
49.00 |
|
|
Y |
38.00 |
38.00 |
38.00 |
43.00 |
||||||
|
Dimension External dimensions |
L |
mm |
878 |
878 |
878 |
1028 |
1028 |
1028 |
1228 |
|
|
w |
mm |
522 |
522 |
522 |
625 |
625 |
625 |
828 |
||
|
H |
mm |
752 |
752 |
752 |
796 |
796 |
796 |
876 |
||
|
Product Weight (empty) Weight |
kg |
32 |
35 |
40 |
46 |
50 |
56 |
63 |
||
|
Inletφ |
mm |
15.88 |
15.88 |
15.88 |
22.22 |
22.22 |
22.22 |
22.22 |
||
|
Outlet diameter |
mm |
15.88 |
15.88 |
15.88 |
15.88 |
19.05 |
19.05 |
22.22 |
||
Note: Our standard products are designed for horizontal placement. For vertical configurations, please append (H) to the model designation, e.g., C1-010 (H).
Note:Greenhalgh standard C1 is verical air discharge,for horizontal air discharge please add (H)in nomenclature,for example:C1-010(H).
|
Fin spacing: 2.2 mm |
||||||||||
|
Type model |
C1-029 |
C1-035 |
C1-049 |
C1-059 |
C1-070 |
C1-095 |
C1-114 |
|||
|
Heat exchange capacity |
R404A |
△ |
KW |
29.44 |
34.67 |
49.02 |
58.62 |
70.09 |
94.96 |
113.94 |
|
Y |
26.13 |
30.76 |
38.31 |
44.53 |
50.53 |
74.69 |
87.13 |
|||
|
R22 |
△ |
28.71 |
33.14 |
48.52 |
57.60 |
67.53 |
94.46 |
112.48 |
||
|
Y |
25.36 |
29.35 |
37.58 |
43.29 |
48.18 |
73.55 |
85.01 |
|||
|
Air Flow blowing rate |
△ |
M³/h |
7407.00 |
6838.00 |
17809 |
16944 |
15434 |
35620 |
33891 |
|
|
Y |
6386.00 |
6105.00 |
11549 |
11086 |
10093 |
23081 |
22157 |
|||
|
Fan Motor fan electromotor |
△ |
Phase |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Y |
||||||||||
|
△ |
w |
790.00 |
790.00 |
2600 |
2600 |
2600 |
5200 |
5200 |
||
|
Y |
490.00 |
490.00 |
1600 |
1600 |
1600 |
3200 |
3200 |
|||
|
△ |
A |
1.45 |
1.45 |
4.80 |
4.80 |
4.80 |
9.60 |
9.60 |
||
|
Y |
0.89 |
0.89 |
2.70 |
2.70 |
2.70 |
5.40 |
5.40 |
|||
|
Fan electric fan |
No.xφ |
1x1x500 |
1x1x500 |
1x1x630 |
1x1x630 |
1x1x630 |
2×1x630 |
2x1x630 |
||
|
Sound Pressure Level noise |
△ Y |
DB(A)10m |
49.00 |
49.00 |
59 |
59 |
59 |
61 |
61 |
|
|
43.00 |
43.00 |
52 |
52 |
52 |
54 |
54 |
||||
|
Dimension External dimensions |
L |
mm |
1228 |
1228 |
1528 |
1528 |
1528 |
2828 |
2828 |
|
|
w |
mm |
828 |
828 |
1032 |
1032 |
1032 |
1032 |
1032 |
||
|
H |
mm |
876 |
876 |
920 |
920 |
920 |
920 |
920 |
||
|
Product Weight (empty) Weight |
kg |
69 |
76 |
110 |
115 |
130 |
198 |
218 |
||
|
Inletφ |
mm |
28.57 |
28.57 |
34.92 |
34.92 |
41.28 |
41.28 |
53.90 |
||
|
Outlet diameter |
mm |
22.22 |
22.22 |
28.57 |
28.57 |
34.92 |
34.92 |
41.28 |
||
Note: Our standard products are designed for horizontal placement. For vertical configurations, please append (H) to the model designation, e.g., C1-010 (H).
Note:Greenhalgh standard C1 is verical air discharge,for horizontal air discharge please add(H)in nomenclature,for example:C1-010(H).
Installation and Maintenance
Proper installation and maintenance significantly enhance Air-Cooled Condenser efficiency and lifespan.
Installation Tips
● Ensure horizontal or slightly inclined installation to avoid water accumulation on coils.
● Keep fan inlet and outlet areas unobstructed for smooth airflow.
● Connect fan and motor to IP-rated electrical protection.
● Use protective covers in high-wind or highly corrosive environments.
Maintenance Tips
● Inspect fan blades, bearings, and motors regularly.
● Clean coil fins to prevent dust accumulation and maintain heat exchange efficiency.
● Check refrigerant piping and connections for leaks.
● Periodically calibrate EC inverter fan pressure controllers to maintain energy savings.
Following proper installation and maintenance practices ensures high-efficiency operation, longer service life, and reliable system performance.
Why Choose Us
● Made in China, Exported Worldwide: Over 20 years of experience designing and manufacturing Air-Cooled Condenser with more than 10,000 units delivered globally.
● Full In-House Coil Production: From fin pressing, tube bending, to welding and leak testing, every coil is made internally to guarantee quality.
● Expert Engineering Support: We size and select each condenser based on refrigerant, temperature, airflow, and noise requirements. Detailed reports and acoustic data are provided with every order.
● OEM Volume Supply: Reliable performance, competitive pricing, short lead times, and flexible delivery schedules for high-volume OEM projects.
● Comprehensive Product Range: From small 2 kW units to 2,000 kW remote condensers, including V-shape, flat, remote, and CO₂-rated units, standardizing procurement for all applications.
● Cost-Effective: 20–35% lower cost than equivalent European units, offering real advantages for margins and market competitiveness.
