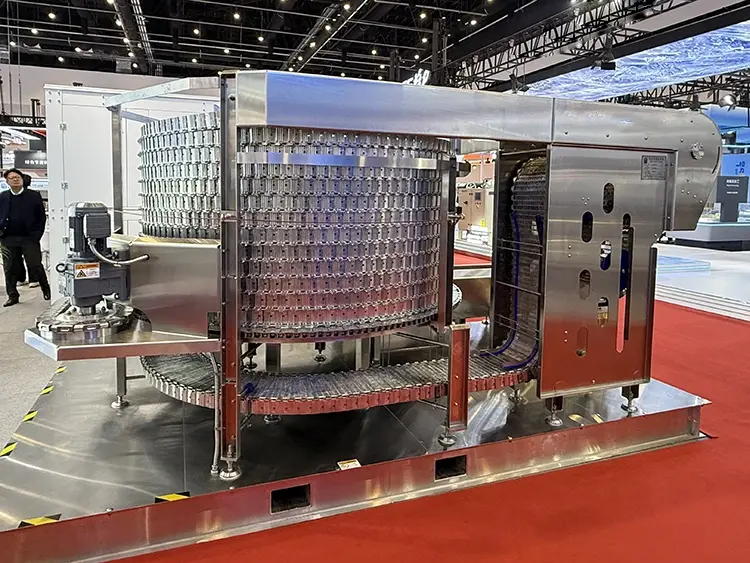

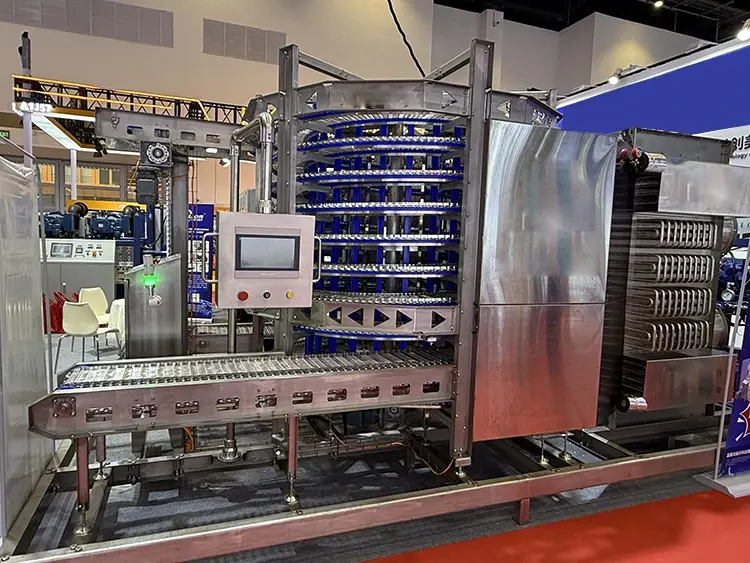

Single-Drum Spiral Freezer
Lynxcool's Single-Drum Spiral Freezer significantly optimizes your food freezing workflow. Designed for high-efficiency operation and made in China, this machine sets the industry benchmark for continuous single-quantity freezing. Designed for high-volume processors, it freezes products individually within minutes, eliminating clumping and deformation associated with traditional methods. With throughput rates ranging from 200 kg/h to over 5,000 kg/h, our spiral freezer maximizes production capacity while minimizing your factory footprint.
Why Choose the Lynxcool's Single-Drum Spiral Freezer?
1. Maximized Space Efficiency

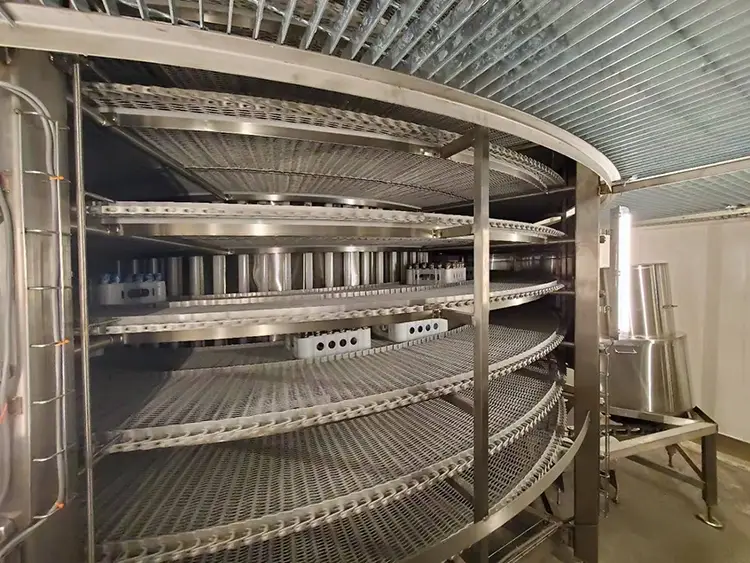

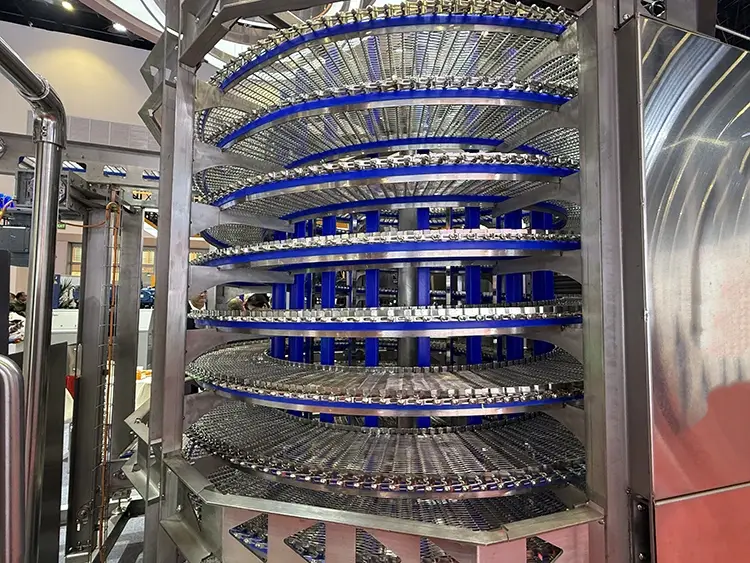

Unlike traditional tunnel freezers, the single-drum spiral design stacks the conveyor belt in a continuous helix. This allows for a significantly longer belt length within a compact footprint.
Space-Saving: A 500 kg/h unit occupies roughly the same floor area as two parking spaces.
Volume Reduction: Cuts refrigerated enclosure volume by 50–70% compared to equivalent tunnel freezers, drastically reducing insulation and energy costs.
2. Superior Product Integrity
Our high-velocity recirculating air system blasts cold air at 3–5 m/s across the product layer. Combined with operating temperatures of −30°C to −40°C, this achieves rapid surface crust-freezing. The result? Individually separated, free-flowing products with zero clumping—perfect for direct packaging.
3. Maintenance & Hygiene Built-In

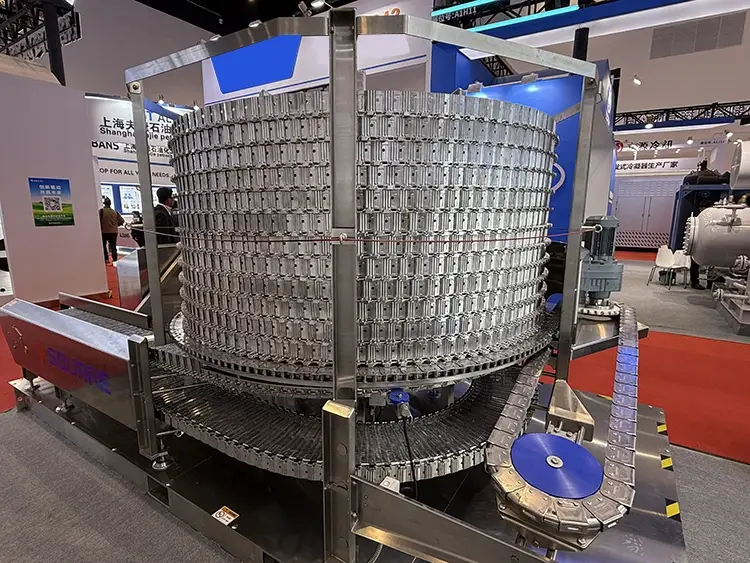

Self-Stacking Belt: The positive drum drive system eliminates belt slip and reduces tension to near zero, extending belt life by 3–5 years.
Hygienic Design: Full AISI 304/316L stainless steel construction meets EHEDG and NSF standards. The open-frame design allows for full CIP (Clean-in-Place) and manual wash-down access, ensuring strict food safety compliance.
Technical Parameters
|
Parameter |
Value / Range |
|
Freezing Throughput |
200 kg/h — 5,000 kg/h (model-dependent) |
|
Freezing Method |
Individual Quick Freezing (IQF) — air blast, continuous |
|
Air Temperature Inside Freezer |
−30°C to −40°C (setpoint-controlled) |
|
Air Velocity Across Product |
3 — 5 m/s (recirculating centrifugal fan system) |
|
Product Inlet Temperature |
+20°C to +30°C (ambient product) |
|
Product Core Temperature at Discharge |
−18°C (standard IQF specification) |
|
Belt Type |

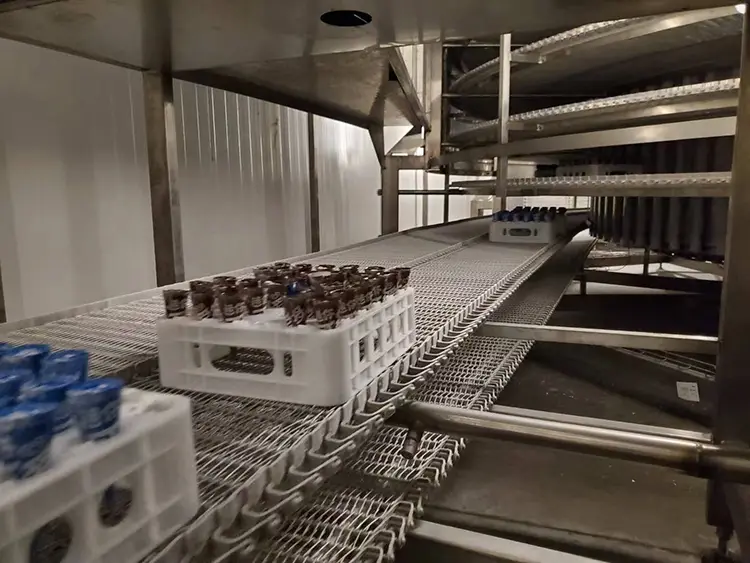

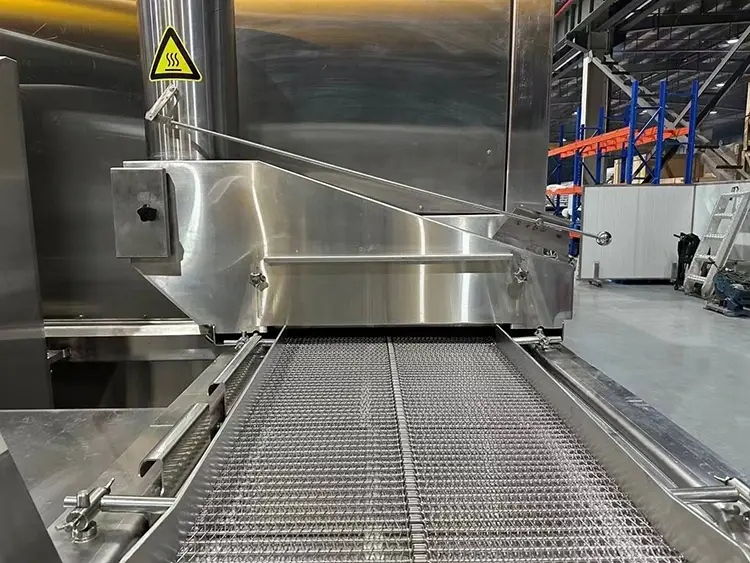

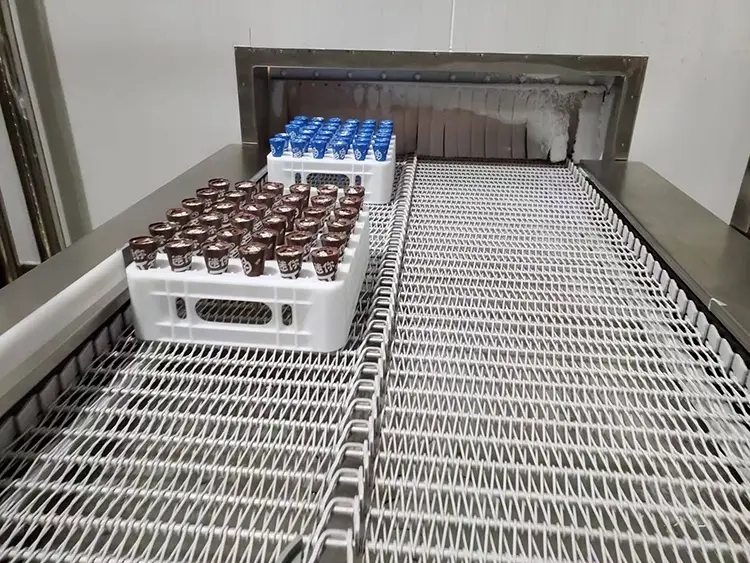

Stainless steel flat-wire mesh; self-stacking on drum |
|
Belt Width |
300 mm — 1,200 mm (model-dependent) |
|
Number of Belt Tiers |
8 — 30 tiers (determined by required freezing time and throughput) |
|
Drum Diameter |
1,500 mm — 4,000 mm (model-dependent) |
|
Drum Drive |
Variable-speed gearmotor; belt positively driven by drum surface friction |
|
Freezing Time Range |
5 — 60 minutes (adjusted by belt speed and tier count) |
|
Evaporator Configuration |
Stainless steel fin-and-tube coil; hot-gas or water defrost |
|
Refrigerants |
R404A / R507A / R448A / R449A / R717 (ammonia) |
|
Compressor Type |
Semi-hermetic screw or open-type screw (integrated or remote) |
|
Evaporation Temperature |
−35°C to −42°C |
|
Defrost Method |
Hot-gas defrost (standard) or water defrost (option) |
|
Defrost Frequency |
Typically every 8–12 hours; PLC-managed |
|
Product-Contact Material |
AISI 304 stainless steel (standard); 316L for marine/high-chloride |
|
Frame & Enclosure Material |
AISI 304 stainless steel frame; insulated polyurethane panel enclosure |
|
Control System |
Siemens / Delta PLC + 10-inch touch HMI; Modbus / BACnet |
|
Motor Voltage |
380 V / 3-phase / 50 Hz (460 V / 60 Hz optional) |
|
Footprint (typical 1,000 kg/h model) |
Approx. 6,000 × 5,000 mm (L × W); height approx. 5,000 mm |
Optimized for Diverse Food Applications
The Single-Drum Spiral Freezer is engineered to handle the specific challenges of various food categories:

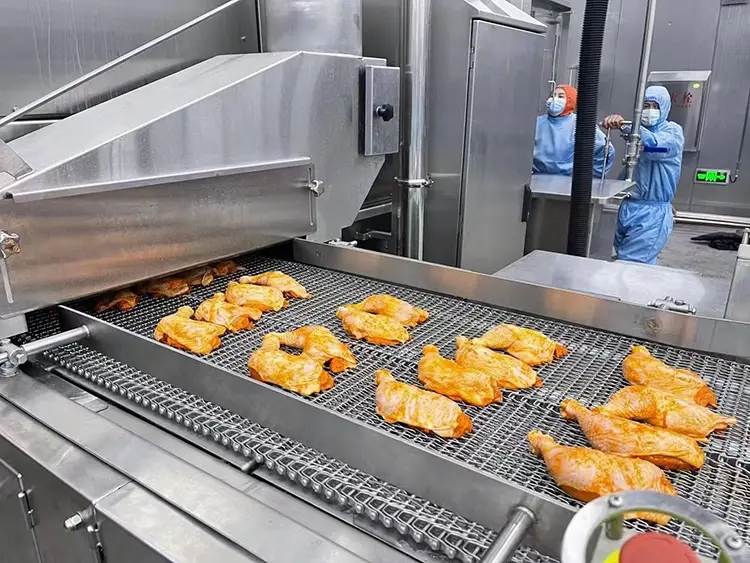

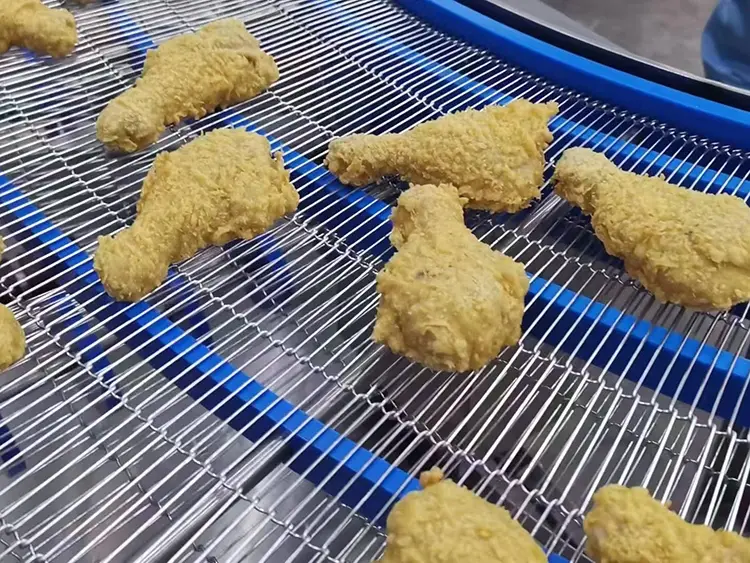

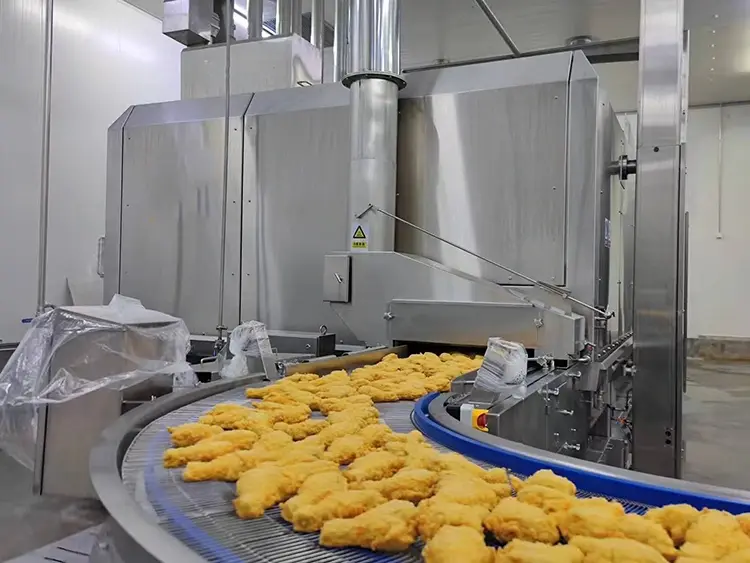

Meat and Poultry: Perfect for burger patties, nuggets, and meatballs. The gentle handling preserves shape, while rapid freezing locks in juiciness.

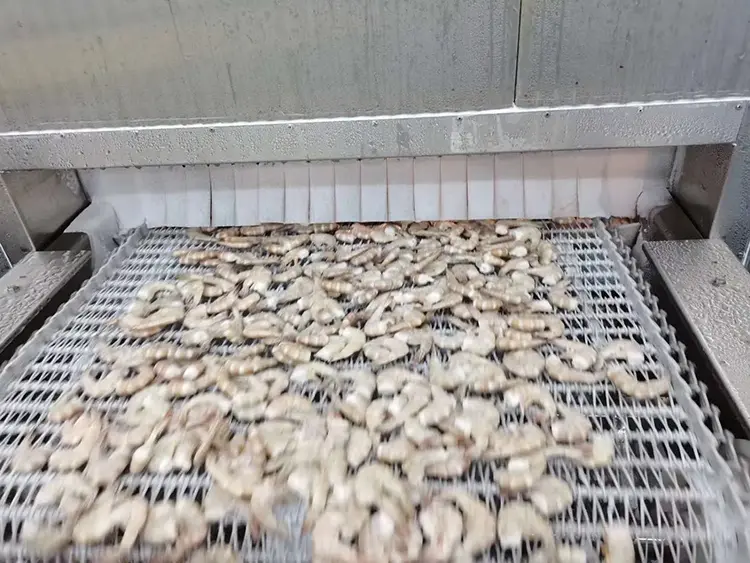

Seafood: Rapid crust formation prevents moisture loss in shrimp, scallops, and fish fillets, preserving texture and color. Ammonia-compatible models available.
Bakery and Ready Meals: Ideal for croissants, par-baked goods, and prepared dishes. The system prevents deformation of delicate dough products.
Convenience Foods: The gentle self-stacking mechanism is perfect for fragile dumplings, spring rolls, and dim sum, preventing wrapper cracking.
Fruits and Vegetables: High-density freezing for berries, peas, and corn ensures free-flowing output without cell damage.
Our Services and Advantages
1. Factory-Integrated and Tested

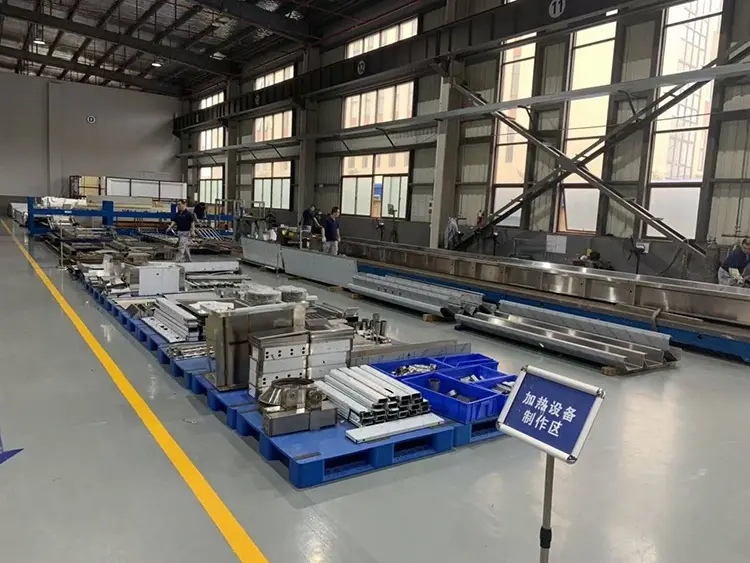

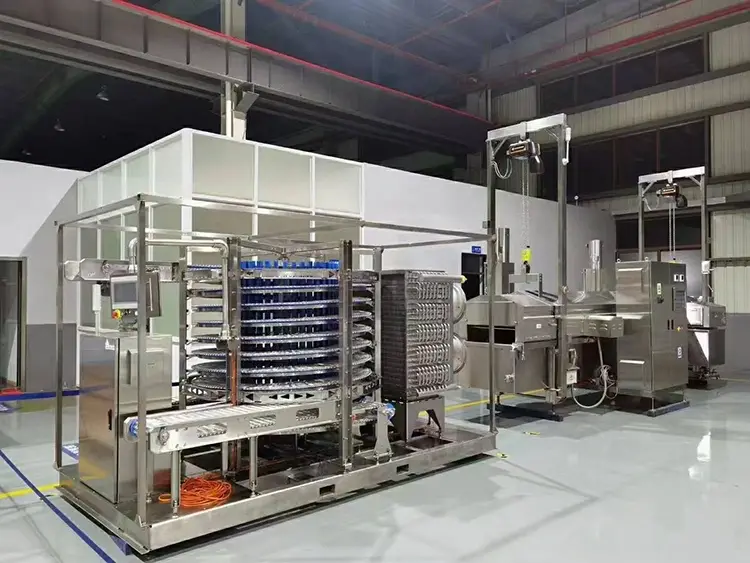

Every Single-Drum Spiral Freezer is assembled and factory-tested in our China production facility. We don't just ship a machine; we ship a verified solution. Each unit undergoes:
Refrigeration system leak testing.
Belt and drum run-in tests.
PLC logic verification.
Performance data recording at rated conditions.
2. Competitive "Made in China" Advantage
By manufacturing in China, we offer fully engineered, food-safety-certified IQF solutions at 25–40% below equivalent European alternatives, without compromising on quality or engineering support.
3. Application-Specific Engineering
No two products are the same. Our engineering team conducts a product-specific freezing time analysis to configure the exact drum diameter, tier count, and belt speed required for your specific SKU, guaranteeing performance from day one.
Ready to Optimize Your Freezing Line?
Don't let inefficient freezing hold back your production. The Single-Drum Spiral Freezer is designed to reduce your energy costs, maximize your floor space, and ensure premium product quality.
Contact us today to discuss your specific throughput requirements and receive a customized engineering proposal for your food processing facility.
