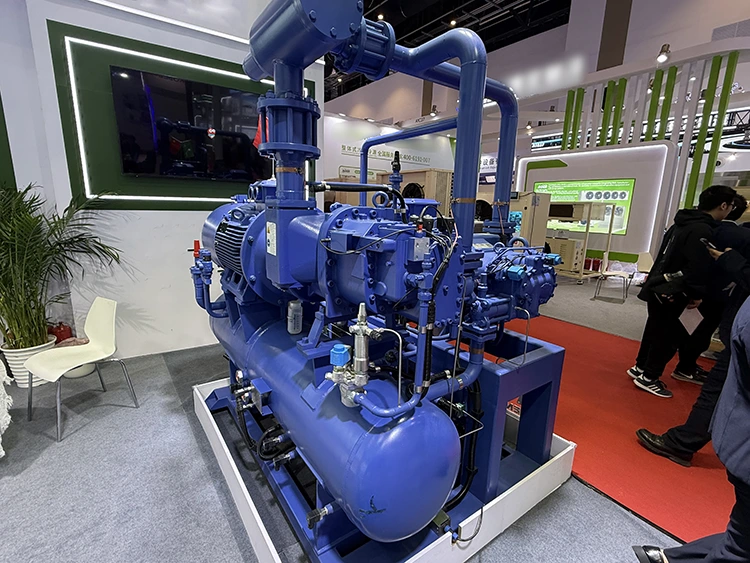

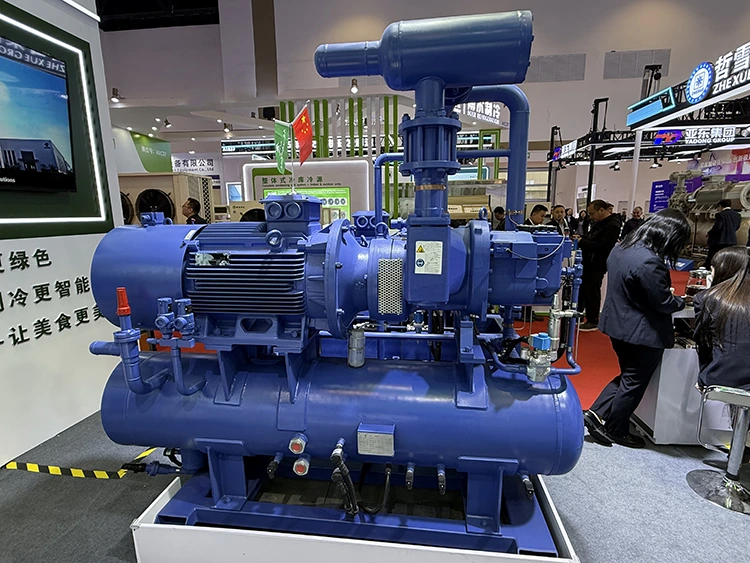

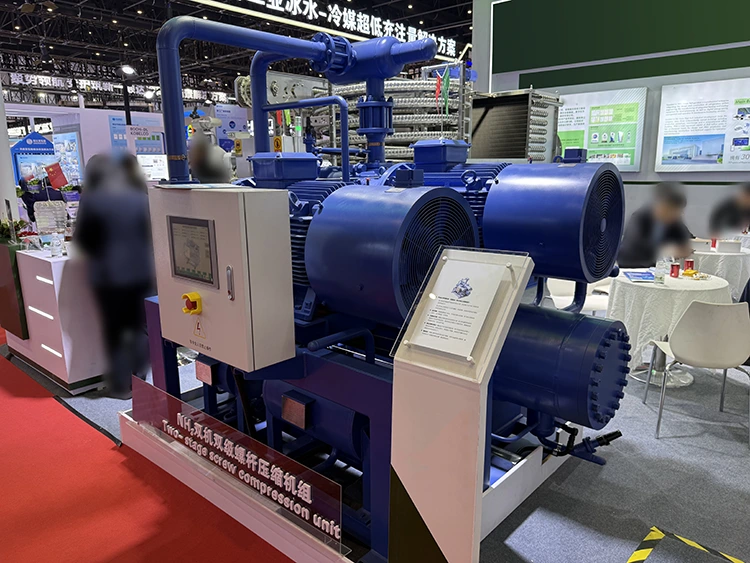

Dual-Compressor Two-Stage Refrigeration Unit

The supplier and manufacturer Lynxcool’s Dual-Compressor Two-Stage Refrigeration Unit is engineered to deliver exceptional performance in ultra-low temperature applications. Designed with precision and reliability, this equipment combines two compression stages—low-pressure and high-pressure—each optimized for efficiency and safety. Its dual-compressor configuration ensures continuous operation, even under fault conditions, making it a dependable choice for industries where cooling reliability is critical.

Key Features

Core advantages include:

● Two-Stage Compression: The unit operates with low-pressure and high-pressure compressors, maintaining a stage pressure ratio between 3:1 and 5:1, optimizing both cooling efficiency and operational stability.

● Energy Efficiency: The staged start-up mechanism reduces energy consumption by up to 30%, helping lower operational costs without compromising performance.

● Fault Tolerance: If one compressor encounters an issue, the other continues to provide essential cooling, ensuring uninterrupted operation.

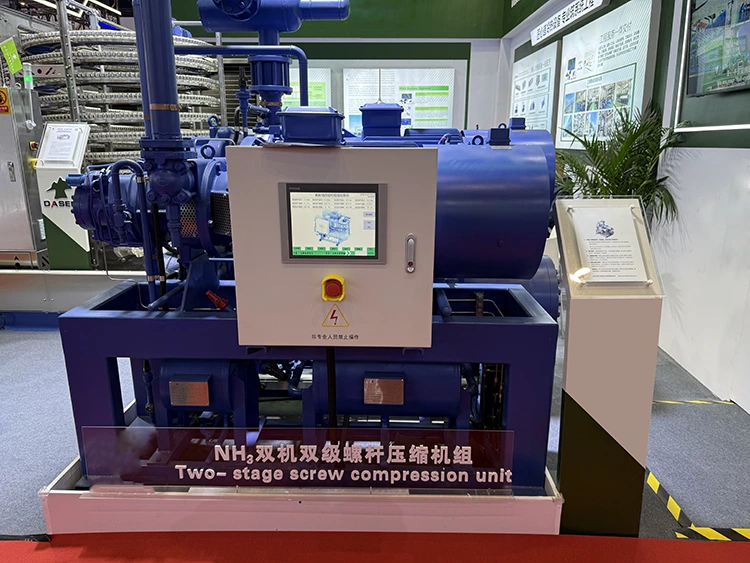

● PLC Automation: Fully integrated Siemens or Delta PLC control with HMI interface allows automatic load balancing, defrosting cycles, alarm notifications, and SCADA integration.

● Differential Pressure Lubrication: Eliminates the need for a separate oil pump motor, reducing energy loss and potential points of mechanical failure.

● Quality Manufacturing: Assembled in China using high-quality international components, ensuring durability and long-term reliability.

Technical Parameters

The Dual-Compressor Two-Stage Refrigeration Unit is designed to adapt to a wide range of applications. Below is a detailed table of technical parameters:

Applications

The equipment is tailored for industries that demand ultra-low temperature performance:

Food Industry

● Quick Freezing: Ideal for meat, seafood, and prepared foods, achieving temperatures from −35 °C to −45 °C.

● Cold Storage: Large-scale frozen warehouses maintain consistent temperatures between −25 °C and −35 °C.

Chemical and Pharmaceutical Industry

● Solvent Condensation: Maintains stable low temperatures for sensitive chemical processes.

● Reaction Cooling: Supports reactions requiring controlled temperatures down to −60 °C.

Laboratory and Research Applications

● Low-Temperature Labs: Suitable for environmental chambers, cryogenic testing, and other scientific research requiring precise ultra-low temperature control.

Operational Advantages

The Dual-Compressor Two-Stage Refrigeration Unit design ensures that performance, efficiency, and reliability are maintained under demanding conditions. Key operational benefits include:

1.Continuous Operation: Redundant compressor design mitigates downtime risks.

2.Smart Control: PLC automation enables predictive maintenance, alarms, and optimized load distribution.

3.Energy Savings: Stage-wise compression and differential pressure lubrication reduce power consumption.

4.Robust Design: Built to withstand extreme temperatures, ensuring long service life in challenging environments.

Installation and Support

The equipment is designed for straightforward installation and commissioning:

● Lead Time: 10–16 weeks depending on configuration.

● Installation: 3–7 days, with 2–4 days for commissioning.

● Technical Support: 24/7 service availability, remote diagnostics, and on-site assistance ensure minimal downtime.

This high level of support, combined with rigorous quality control during manufacturing, enhances reliability and extends equipment lifespan.

FAQ

Q1: When should I choose a Dual-Compressor Two-Stage Refrigeration Unit instead of a single-unit unit?

A1: A dual-compressor system should be chosen when the operating temperature is below -30 °C, when load flexibility is required, or when critical systems require redundancy. Single-unit units have a simpler structure but lack staged start-up and fault tolerance.

Q2: Are these units really manufactured in China?

A2: Yes, all Units are designed and manufactured in China, meeting ISO 9001 quality standards and international CE requirements.

Q3: Can I use ammonia (R717) as a refrigerant?

A3: Yes, we support R717 (ammonia), which is the most efficient choice for large industrial systems. We also support R404A, R507A, and some HFO mixed refrigerants.

Q4: How do I determine the intermediate pressure?

A4: To achieve optimal compressor efficiency, the intermediate pressure is automatically set to the geometric mean of the condensing and evaporating pressures (pm = √(pk × p₀)).

Q5: What happens if a compressor fails?

A5: If the low-pressure stage compressor fails, the high-pressure stage compressor can continue operating. If the high-pressure stage compressor fails, the low-pressure stage compressor will maintain cooling at a reduced capacity. The PLC will reconfigure the system and issue an alarm to the operator.

Q6: Do you support SCADA or BMS integration?

A6: Yes, our PLC system supports Modbus RTU/TCP, BACnet MS/TP, Profibus, and OPC-UA protocols, and can be seamlessly integrated with third-party SCADA, BMS, or EMS platforms.
