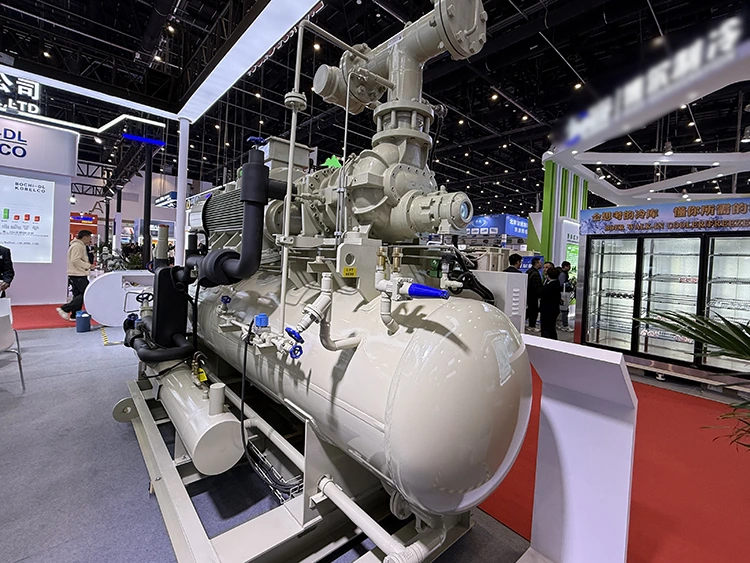

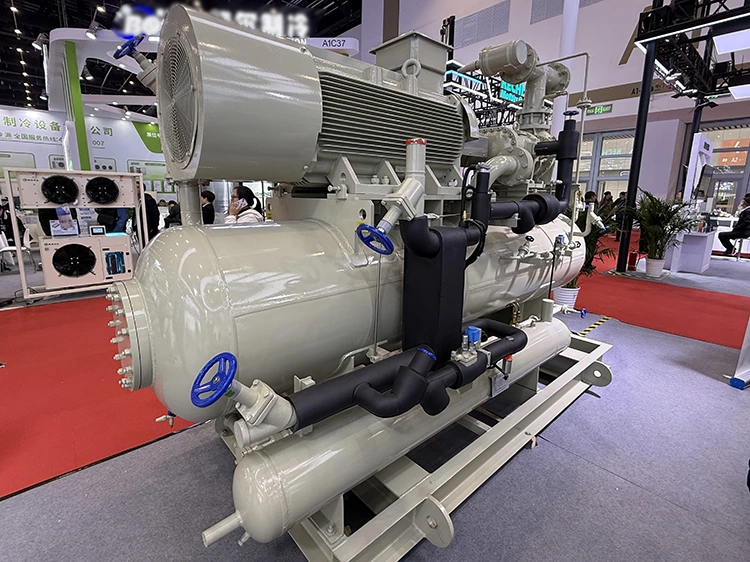

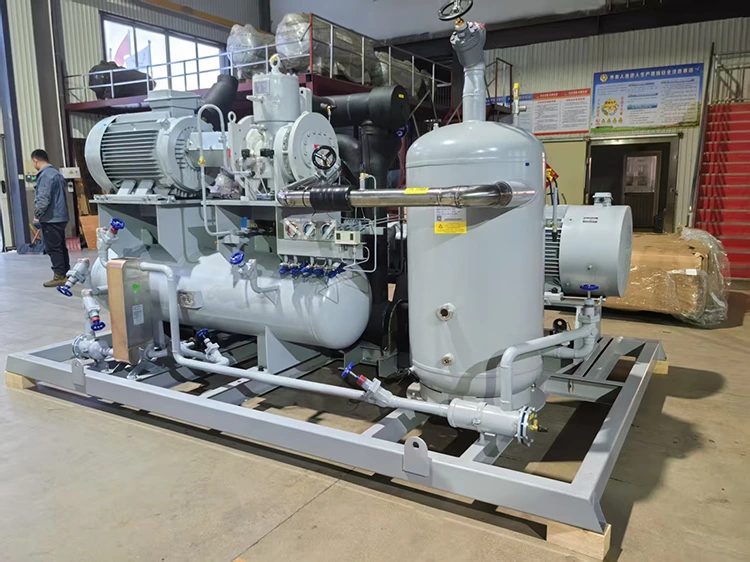

Open-type Single-Stage Screw Refrigeration Compressor Unit
The Open-type Single-Stage Screw Refrigeration Compressor Units are high-efficiency, low-maintenance solutions manufactured by Lynxcool, a leading refrigeration equipment manufacturer in China. Our compressors, with capacities ranging from 265 to 10,000 $m^3/h$, are compatible with eco-friendly refrigerants like R717 (Ammonia) and R404A. As a trusted supplier of refrigeration systems, we offer customized solutions for industrial cold storage, marine refrigeration, and large-scale warehouse cooling. Contact us today to learn more about our products and request a quote directly from our factory.
What is Open-type Single-stage Screw Refrigeration Compressor Units?

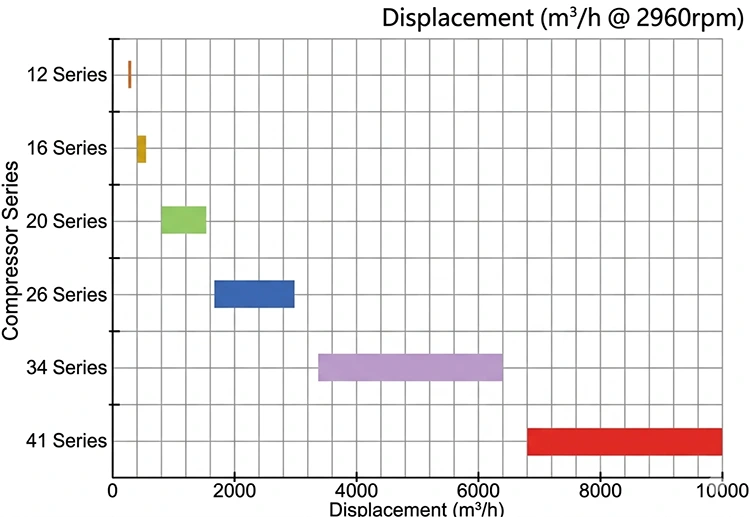

Open-type Single-stage Screw Refrigeration Compressor Units are high-performance refrigeration systems designed for industrial and marine applications. These units use screw compressor technology for efficient, reliable, and low-maintenance cooling. With capacities ranging from 265 to 10,000 $m^3/h, they are ideal for a variety of cooling needs, from cold storage to marine refrigeration.
Manufactured by Lynxcool, a leading refrigeration equipment manufacturer in China, these units are engineered to work with eco-friendly refrigerants such as R717 (Ammonia) and R404A. The stepless capacity control system allows for 10% to 100% load adjustment, ensuring optimal performance and energy efficiency under varying conditions.
Product Parameters
|
Model |
Inlet Diameter (mm) |
Exhaust Diameter (mm) |
Dimensions(mm) |
Cooling Capacity(kW) |
|||
|
Length |
Width |
Height |
NH₃-35/35℃ |
NH₃-15/35℃ |
|||
|
SRM-12L |
80 |
50 |
956 |
381 |
454 |
60.2 |
141.8 |
|
SRM-16S |
125 |
80 |
1039 |
445 |
523 |
100.6 |
246.8 |
|
SRM-16M |
125 |
80 |
1125 |
445 |
523 |
127.3 |
311.7 |
|
SRM-16L |
125 |
80 |
1205 |
445 |
523 |
152.6 |
373.6 |
|
SRM-20S |
150 |
125 |
1188 |
558 |
599 |
204.9 |
500.3 |
|
SRM-20M |
150 |
125 |
1317 |
558 |
599 |
264.2 |
643 |
|
SRM-20L |
150 |
125 |
1398 |
558 |
599 |
304.8 |
742.6 |
|
SRM-20LL |
150 |
125 |
1676 |
558 |
599 |
373.9 |
882.6 |
|
SRM-26S |
250 |
200 |
1491 |
707 |
843 |
403.9 |
976.1 |
|
SRM-26M |
250 |
200 |
1606 |
707 |
843 |
508.1 |
1224.2 |
|
SRM-26L |
250 |
200 |
1717 |
707 |
843 |
616.5 |
1461.9 |
|
SRM-26LL |
250 |
200 |
1846 |
707 |
843 |
756.3 |
1734.5 |
|
SRM-34S |
350 |
250 |
1920 |
869 |
961 |
827.7 |
1982.3 |
|
SRM-34M |
350 |
250 |
2073 |
869 |
961 |
1074 |
2525 |
|
SRM-34L |
350 |
250 |
2210 |
869 |
961 |
1254.5 |
3002.9 |
|
SRM-34LL |
350 |
250 |
2428 |
869 |
961 |
1624.2 |
3818.9 |
|
SRM-41S |
500 |
400 |
2485 |
1046 |
1261 |
1727.1 |
4091.1 |
|
SRM-41D |
500 |
400 |
2660 |
1046 |
1264 |
1930 |
4633.6 |
|
SRM-41M |
500 |
400 |
2660 |
1046 |
1261 |
2145.4 |
5051.8 |
|
SRM-41L |
500 |
400 |
2852 |
1046 |
1261 |
2573.3 |
6027.8 |
Key Features
Advanced Profile: Features the "i" type rotor profile with a 5+7 lobe combination for superior efficiency.

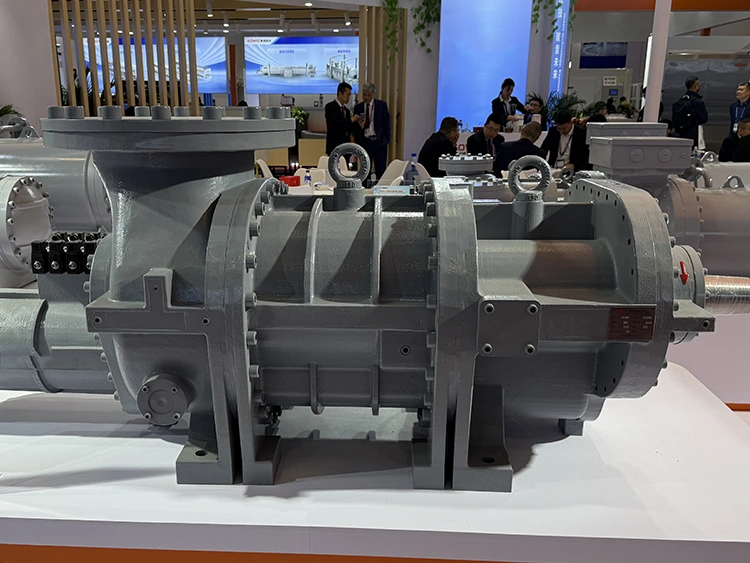

High-Precision Rotors: Rotors are machined from forged steel with micron-level precision, offering excellent mechanical properties, high strength, wear resistance, and an extended service life.
Robust Housing: Utilizes a ductile iron (nodular cast iron) casing with a design working pressure of 2.8 MPa.
Innovative Shaft Seal: The Single-Stage Screw Refrigeration Compressor Unit features an innovative shaft seal structure with a silicon carbide wear-resistant sealing surface, ensuring extremely high operational reliability.
Durable Bearings: High-wear-resistant rolling bearings with a design life of 100,000 hours.

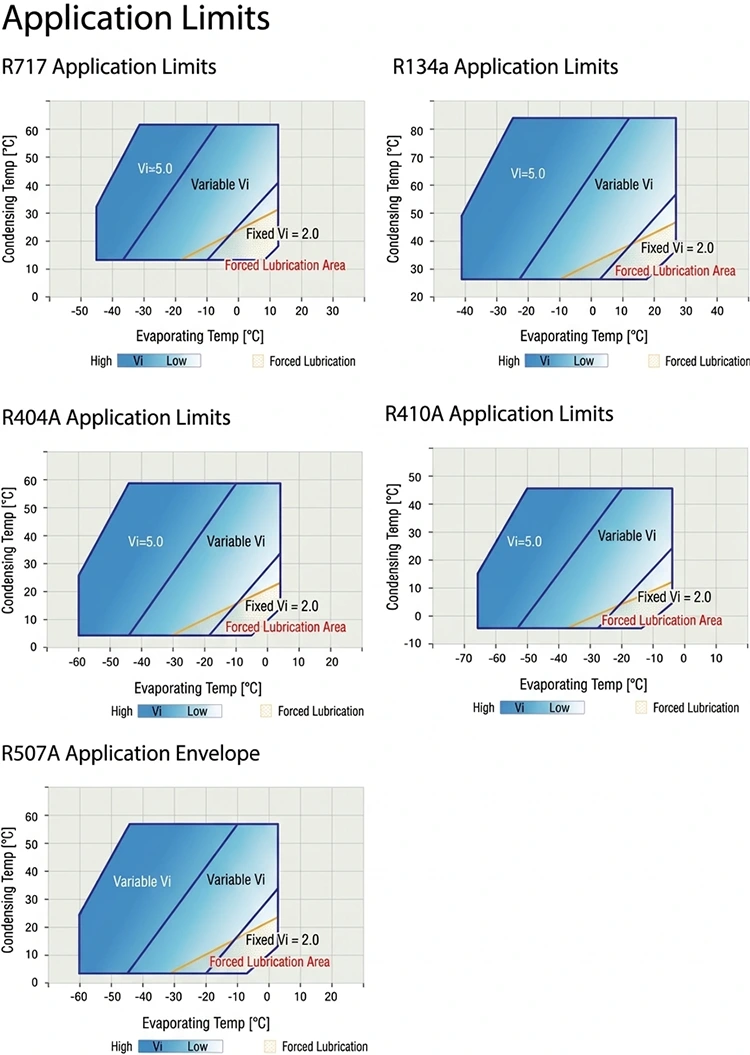

Vi Adjustment: Integrated Vi (Volume Index) adjustment ensures optimized performance under various operating conditions.
Stepless Regulation: Provides 10% to full load stepless capacity control, featuring an advanced explosion-proof device for the regulation cylinder.
Integrated Oil System: The integrated oil circuit design allows for easy installation and a low failure rate.
Applications
Lynxcool Open-type Single-stage Screw Refrigeration Compressor Units are perfect for a wide range of cold storage applications, such as:
Industrial Cold Storage: For food processing, pharmaceuticals, and chemical storage.
Marine Refrigeration: Ideal for cargo ships, tanker refrigeration, and offshore facilities.
Large-scale Warehouses: Serving logistics, distribution centers, and food distribution industries
Why Choose Lynxcool?
Superior Performance: High energy efficiency, low operational costs, and stable performance.
Expert Support: Our professional team ensures seamless installation, commissioning, and after-sales service.
Global Reach: With 15 service centers worldwide, we provide rapid support for your refrigeration systems.
