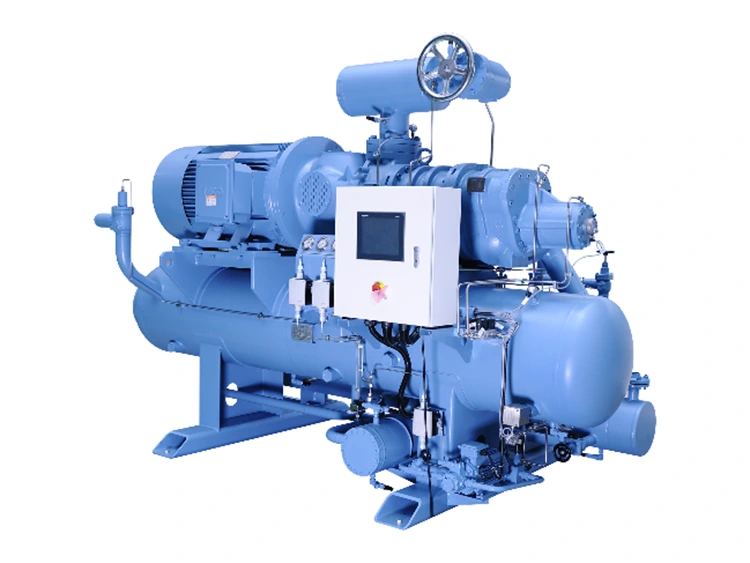

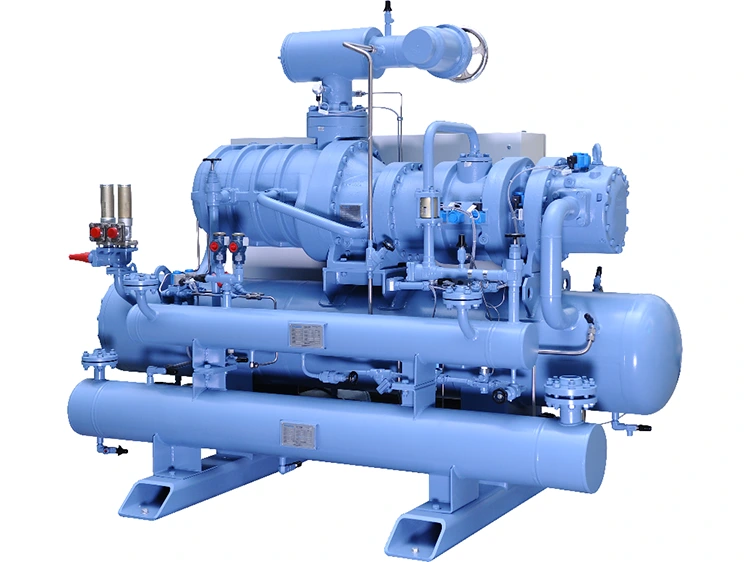

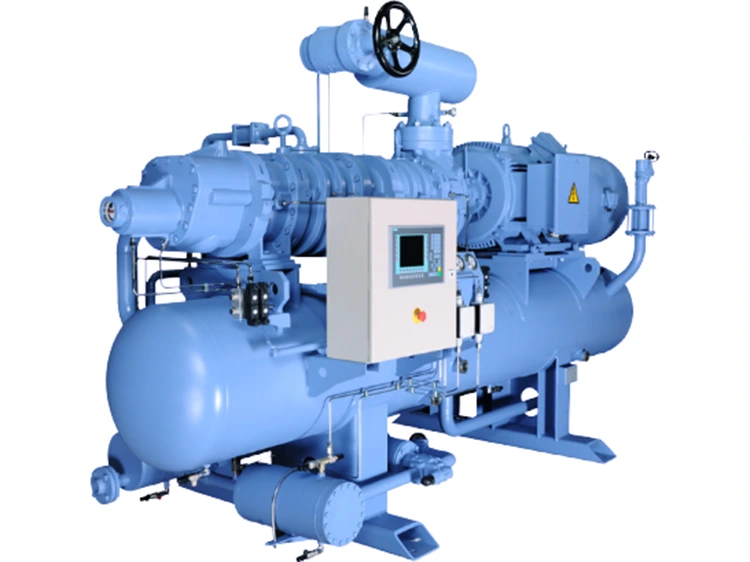

Open-type Two-stage Screw Refrigeration Compressor Unit
The Open-type Two-stage Screw Refrigeration Compressor Units from Lynxcool are specifically engineered for ultra-low temperature applications and large-temperature-differential environments. By utilizing a two-stage compression process (low-pressure and high-pressure stages), these units significantly improve volumetric efficiency and reduce energy consumption compared to single-stage units in deep-freezing conditions.
What is an Open-type Two-stage Screw Refrigeration Compressor Unit?
An Open-type Two-stage Screw Refrigeration Compressor Unit consists of a low-pressure (LP) booster and a high-pressure (HP) compressor working in series. This configuration handles the high compression ratios required for deep-freeze temperatures (down to -65℃) while maintaining lower discharge temperatures and higher COP (Coefficient of Performance).
Manufactured by Lynxcool in China, these units are optimized for R717 (Ammonia), R404A, and R507A, offering a reliable and eco-friendly cooling powerhouse for the most demanding industrial environments.
Product Parameters
|
Model |
Suction Port Diameter (mm) |
Discharge Port Diameter (mm) |
Dimensions(mm) |
Cooling Capacity(kW)* |
|||
|
Length |
Width |
Height |
NH3-50/+35℃ |
NH3-40/+35℃ |
|||
|
SRM-16125S |
125 |
65 |
1420 |
657 |
586 |
49 |
85 |
|
SRM-1612MS |
125 |
65 |
1471 |
657 |
586 |
59 |
102 |
|
SRM-1612ML |
125 |
65 |
1511 |
657 |
586 |
63 |
110 |
|
SRM-1612LS |
125 |
65 |
1521 |
657 |
586 |
70 |
120 |
|
SRM-1612LL |
150 |
65 |
1561 |
657 |
586 |
70 |
121 |
|
SRM-20165S |
150 |
80 |
1915 |
525 |
563 |
100 |
173 |
|
SRM-2016MS |
150 |
80 |
2032 |
525 |
563 |
124 |
214 |
|
SRM-2016MM |
150 |
80 |
2126 |
525 |
563 |
133 |
229 |
|
SRM-2016LS |
150 |
80 |
2121 |
525 |
563 |
142 |
244 |
|
SRM-2016LM |
150 |
80 |
2203 |
525 |
563 |
144 |
250 |
|
SRM-2016LL |
150 |
80 |
2268 |
525 |
563 |
145 |
251 |
|
SRM-2016LLS |
150 |
80 |
2310 |
525 |
563 |
166 |
285 |
|
2016LLM |
150 |
80 |
2391 |
525 |
563 |
169 |
291 |
|
2016LLL |
150 |
80 |
2471 |
525 |
563 |
171 |
296 |
|
26205S |
250 |
125 |
2175 |
708 |
805 |
200 |
346 |
|
2620MS |
250 |
125 |
2246 |
708 |
805 |
240 |
412 |
|
2620MM |
250 |
125 |
2368 |
708 |
805 |
256 |
442 |
|
2620LS |
250 |
125 |
2335 |
708 |
805 |
282 |
485 |
|
2620LS-H |
250 |
125 |
2335 |
708 |
805 |
282 |
485 |
|
2620LM |
250 |
125 |
2456 |
708 |
805 |
286 |
498 |
|
2620LL |
250 |
125 |
2534 |
708 |
805 |
288 |
500 |
|
2620LLS |
250 |
125 |
2453 |
708 |
805 |
332 |
570 |
|
2620LLM |
250 |
125 |
2587 |
708 |
805 |
339 |
584 |
|
2620LLL |
250 |
125 |
2652 |
708 |
805 |
343 |
592 |
|
34265S |
350 |
200 |
2704 |
839 |
920 |
396 |
685 |
|
3426MS |
350 |
200 |
2800 |
839 |
920 |
479 |
825 |
|
3426MM |
350 |
200 |
2914 |
839 |
920 |
504 |
873 |
|
3426LS |
350 |
200 |
2885 |
839 |
920 |
566 |
972 |
|
3426LS-H |
350 |
200 |
2994 |
839 |
920 |
571 |
992 |
|
3426LM |
350 |
200 |
2994 |
839 |
920 |
571 |
992 |
|
3426LL |
350 |
200 |
3109 |
839 |
920 |
579 |
1000 |
|
3426LLS |
350 |
200 |
3056 |
853 |
920 |
697 |
1195 |
|
3426LLM |
350 |
200 |
3171 |
853 |
920 |
710 |
1221 |
|
3426LLL |
350 |
200 |
3280 |
853 |
920 |
720 |
1241 |
What are the features of this product?
Optimized Two-stage Compression: Effectively handles high compression ratios, ensuring stable operation even at evaporating temperatures as low as -65℃.
High-Efficiency "i" Profile Rotors: Both LP and HP stages feature the advanced 5+7 lobe profile, maximizing gas displacement and minimizing leakage.
Interstage Cooling System: Equipped with a highly efficient intercooler (plate or shell-and-tube) to cool the discharge gas from the LP stage, significantly boosting overall cycle efficiency.
Precision Forged Steel Rotors: Machined with micron-level accuracy for superior strength, ensuring the unit can withstand the heavy-duty cycles of industrial freezing.
Smart Vi & Capacity Control: Features independent Vi adjustment and 10%–100% stepless capacity regulation for both stages, allowing for precise load matching and energy savings.
Advanced Lubrication Management: Integrated oil management system with high-efficiency oil separators ensures minimal oil carry-over and optimal cooling of the rotors.
Durable Build: Utilizes high-grade ductile iron casings and high-precision rolling bearings with a design life exceeding 100,000 hours.
Applications
Two-stage Screw Refrigeration Compressor Units are the preferred choice for extreme cooling requirements:
Deep-Freezing & Blast Freezing: Perfect for IQF (Individual Quick Freezing) tunnels for seafood, poultry, and prepared foods.
Ultra-Low Temperature Cold Storage: Ideal for tuna storage, blood banks, and specialized chemical repositories.
Pharmaceutical Industry: Supporting freeze-drying processes and low-temperature synthesis reactions.
Marine Deep-Freeze: Specialized configurations for fishing vessels and processing ships requiring rapid freezing at sea.
Why Choose Lynxcool Two-stage Solutions?
Extreme Efficiency: The Open-type Two-stage Screw Refrigeration Compressor Unit delivers the highest cooling capacity per kilowatt-hour across the cryogenic range.
Tailored Engineering: Our team can customize the LP/HP ratio and interstage cooling methods to match your specific regional climate and utility costs.
Global Reliability: Backed by Lynxcool’s 15 global service centers, ensuring your critical cold chain never breaks.
